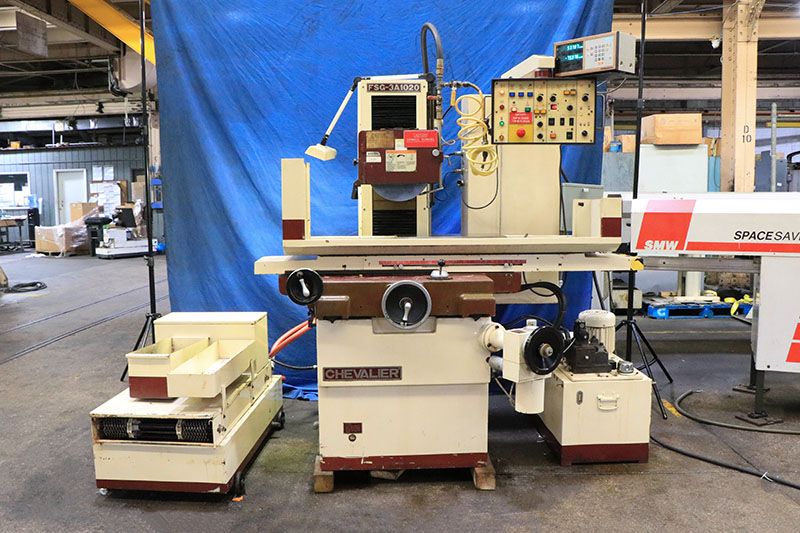

Chevalier FSG-3A1020

Nominal Grinding Capacity: 10" x 20"
Maximum Longitudinal Table Travel, Hydraulic: 22-7/8"
Maximum Longitudinal Table Travel, Manual: 24-3/8"
Maximum Crossfeed Travel, Automatic: 11-7/16"
Maximum Crossfeed Travel, Manual: 11-3/4"
Distance from Spindle Center to Table: 21-1/2"
Variable Table Speed, Hydraulic: 16' to 82' FPM
Automatic Crossfeed Increment: 0.02" to 0.4"
Power Rapid Traverse (Cross): 48" IPM
Crossfeed Handwheel Per Graduation: 0.001"
Crossfeed Handwheel Per Revolution: 0.02"
Automatic Incremental Downfeed: 0.0001" to 0.002"
Auto Downfeed Dial Per Graduation: 0.0005"
Auto Downfeed Per Revolution: 0.1"
Microfeed: 0.0001"
Rapid Traverse Rate: 13" IPM
Spindle Motor: 3 HP
Standard Grinding Wheel: 12" dia. x 1-1/4" x 3"B
Approximate Weight: 3,306 lbs
Approximate Dimensions: 85" x 48" x 65"H
Fully Programmable Microprocessor Auto-Cycle Control with Digital Display
Automatic Incremental Downfeed (Plunge & Surface)
Sparkout Cycle with Automatic Wheelhead Retraction at Completion of Grind Cycle
Power Rapid Wheelhead Positioning
Hydraulic Table Traverse
Electronic Cross & Vertical Feeds
Micro-Downfeed: 0.0001" Gradation
12" Grinding Wheel
"Sokki" High Accuracy 2-Axis Digital Readout Display, Resolution 0.00005"
10" x 20" O.S. Walker "LBP" Fine-Division Electro-Magnetic Chuck with Variable Hold
Neutrofier Control on Machine Control Console
Coolant System with Paper Filtration
Work Light
External Hydraulic System
Auto Lube System
3 HP Super-Precision Direct Drive Spindle
Machine Wired for 3/60/460 Volts
