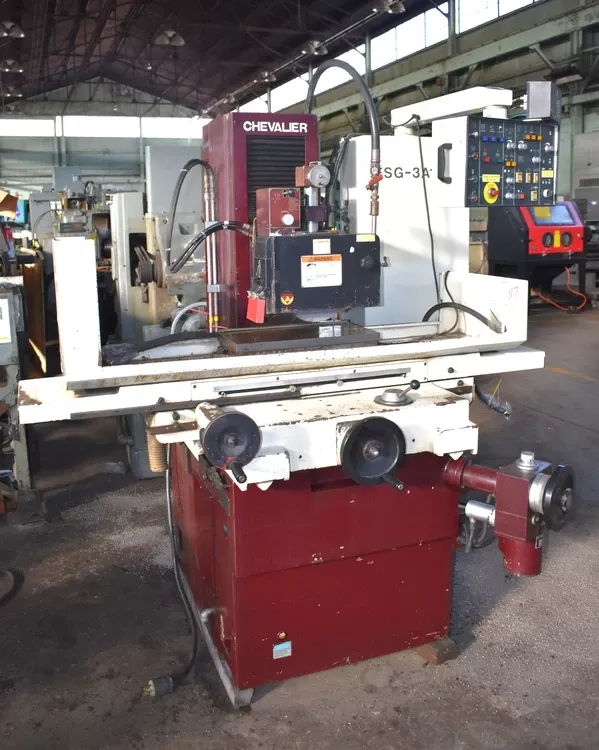

Chevalier FSG-3A1020

Table Width: 10 in
Table Length: 20 in
Grinding Width Capacity Max.: 10 in
Grinding Length Capacity Max.: 20 in
Spindle Orientation: Horizontal
Spindle Motor Power: 2 hp
Grinding Wheel Diameter: 8 in
Grinding Wheel Width: 0.75 in
Grinding Wheel Bore: 1.25 in
Max. Distance Spindle Centerline to Table: 18 in
Table Longitudinal Travel Hydraulic: 22.875 in
Table Longitudinal Travel Manual: 24.375 in
Table Cross Travel Automatic: 11.44 in
Table Cross Travel Manual: 11.75 in
Table Longitudinal Feed Range: 16–82 ft/min
Table Cross Infeed Range: 0.02–0.4 in/rev
Spindle Vertical Feed Automatic: 0.0001–0.002 in/rev
Rapid Cross Traverse: 38 in/min
Rapid Vertical Traverse: 13 in/min
Machine Length: 98 in
Machine Depth: 55 in
Machine Height: 68 in
Machine Weight Approx.: 3306 lb

3-axis fully automatic microprocessor control
Hydraulic automatic feed system
Electromagnetic chuck 10 in x 20 in
Overhead hydraulic wheel dresser
2-axis digital readout
Automatic downfeed with micro downfeed device
Automatic lubrication system
Coolant system with paper separator
