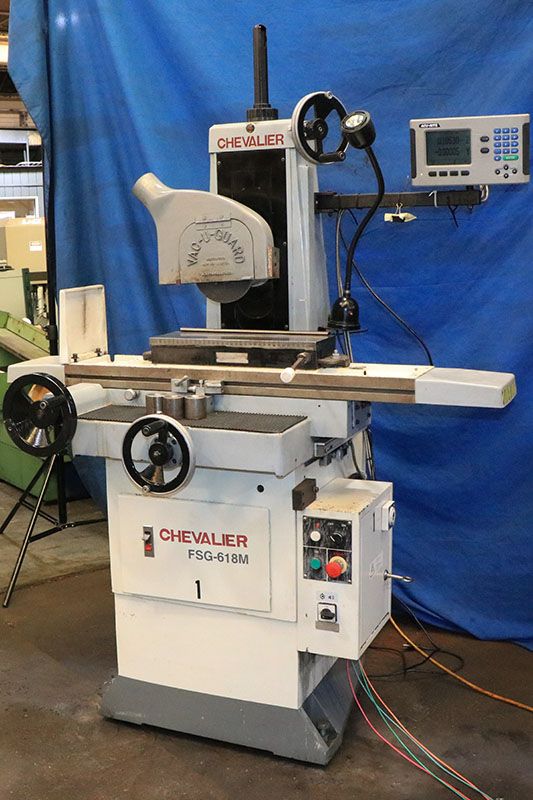

Chevalier FSG-618M

Maximum grinding length 18"
Maximum grinding width 6"
Longitudinal table travel 19"
Cross table travel 7"
Maximum distance from table surface to spindle center 18"
Cross handwheel graduations 0.0005"
Cross handwheel per rev 0.100"
Downfeed handwheel graduations 0.0001"
Vertical handwheel per rev 0.050"
Spindle speed 3,450 RPM
Wheel size 8" x 1/2" x 1-1/4"
Approximate machine weight 1,500 lbs
Approximate dimensions 41" W x 47" D x 76" H
All Meehanite cast iron construction
Hardened and ground table guideways with steel balls
Double V guideways laminated with Turcite-B for saddle travel
Automatic lubrication of leadscrews and ways
Spindle motor 2 HP, 3/60/230-460 Volt
2-axis digital readout ("Acu-Rite 200S")
Wheel cover with dust inlet ("Vac-U-Guard")
Permanent magnetic chuck 6" x 18" ("Ceramax")
Work light
Machine wired for 460 Volts
