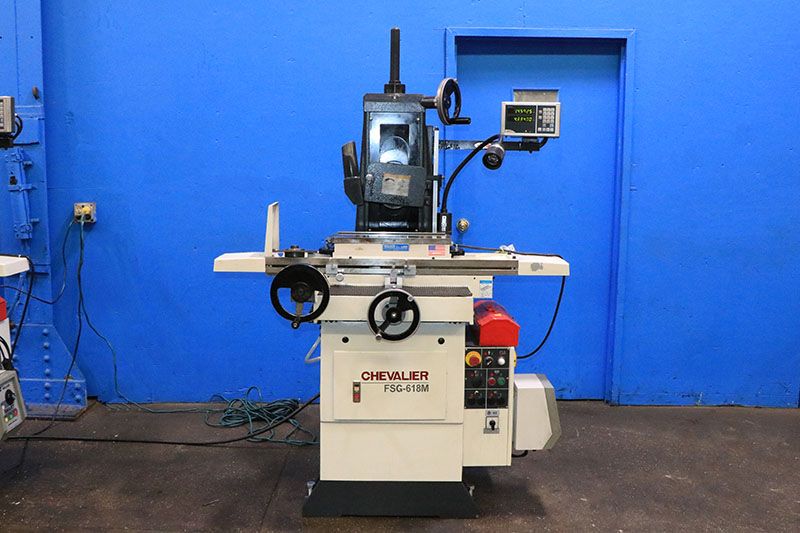

Chevalier FSG-618M

Maximum grinding length: 18"
Maximum grinding width: 6"
Maximum table travel longitudinal: 19"
Maximum table travel cross: 7"
Maximum distance from table working surface to spindle center: 18"
Cross handwheel graduation: 0.0005"
Cross handwheel per revolution: 0.100"
Downfeed handwheel graduation: 0.0001"
Vertical handwheel per revolution: 0.050"
Spindle speed: 3450 RPM
Wheel size: 8" x 1/2" x 1-1/4"
Spindle motor power: 2 HP
Electrical: 3/60/230-460 V
Approximate weight: 1500 lbs
Approximate dimensions: 41" W x 47" D x 76" H
Meehanite cast iron construction
Hardened and ground table guideways with steel balls
Double V guideways laminated with Turcite-B for saddle travel
Automatic lubrication of leadscrews and ways
Roller bearing table
Fagor Innova 2-axis digital readout system
Wheel cover with dust inlet
Electromagnetic chuck system (O.S. Walker LBP fine division)
Variable hold neutrofier chuck control (O.S. Walker Smart Series)
