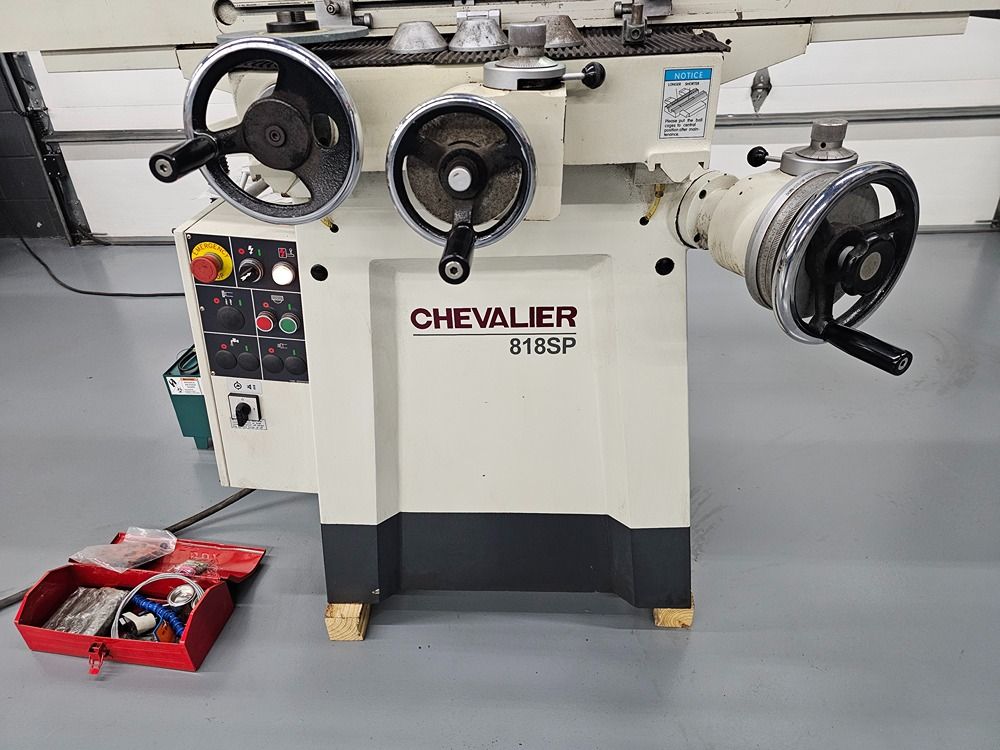

Chevalier FSG-818SP

Table size: 8" x 18"
Max grind length longitudinal: 20"
Max grind width crosswise: 9"
Max distance from table surface to centerline: 20"
Cross traverse handwheel per revolution: 0.200"
Handwheel per graduation: 0.001"
Micro feed per graduation: 0.000050"
Wheel head vertical infeed handwheel per revolution: 0.5"
Wheel head micro feed per graduation: 0.000050"
Spindle speed: 3450 rpm
Grinding wheel size: 8" x 1/2" x 1-1/4"
Fagor 2-axis DRO control system
2 HP spindle motor, 230 V, 3 phase
Electromagnetic chuck: 8" x 18" Kinjung fine line type with chuck controls
Coolant tank and pump
Machine dimensions (L x W x H): 80" x 54" x 84"
Machine weight: 2310 lbs
