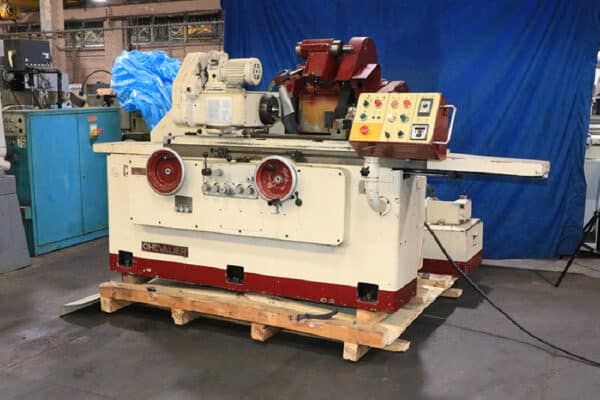

Chevalier GU-1124A

Max. swing over table 10.6"
Distance between centers 23.6"
Max. workpiece weight 286 lbs
Work carriage traverse speed 2-157 IPM
Table swivels clockwise/counterclockwise 9°/4°
Grinding wheel size 14" dia. x 2" wide x 5" bore
Wheelhead swivel left/right 30°
Grinding wheel spindle speeds 1600 RPM
Grinding wheel spindle speeds 1900 RPM
Wheelhead displacement per rev. of handwheel coarse/fine 0.0625"/0.0000625"
Rapid hydraulic infeed stroke 1.57"
Maximum infeed travel 7.87"
Infeed handwheel per rev. 0.039"
Max. automatic infeed travel 0.029"
Auto infeed rough increment 0.0002"-0.0016"
Auto infeed fine increment 0.0001"-0.0002"
Auto plunge rough feed 0.0004"-0.059"
Auto plunge fine feed 0.00004"-0.0004"
Workhead spindle speed 10-507 RPM
Workhead spindle taper #4 Morse
Workhead swivel range 120° (90° ccw, 30° cw)
Tailstock spindle taper #4 Morse
Tailstock spindle travel 1.18"
Machine weight 5,525 lbs
Swing down I.D. grinding attachment with I.D. grinding spindle
Hydraulically actuated longitudinal table traverse
Dual rate automatic infeed at table reversal
Dual rate automatic plunge feed
Sparkout timer
Hydraulically actuated rapid wheelhead advance and retraction
Swing-down internal grinding attachment with spindle
Dual live/dead headstock spindle
Center in workhead
Table mounted single point wheel dresser
Halogen work light
Operating manual and parts list
External hydraulic pump and tank
External coolant pump and tank
5 HP wheelhead drive motor
Machine wired for 230 volt operation
