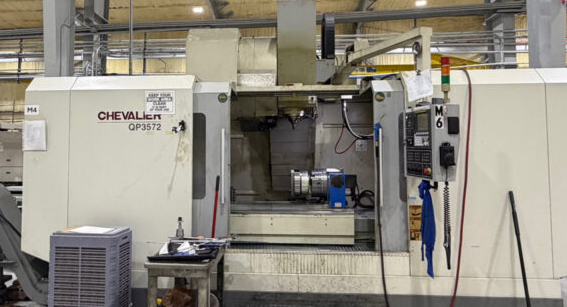

Chevalier QP3572 3 Axis

Travels:
X-axis travel: 72.8 in (1850 mm)
Y-axis travel: 35.4 in (900 mm)
Z-axis travel: 30 in (760 mm)
Rotary table: Kitagawa Corporation MR-320 rotary table
Control system: Fanuc Corporation Series Oi-MD
Rigid tapping
Table size: 78.7 in × 33.9 in
Table load capacity: 5500 lb
Spindle nose to table: 7 – 37 in
Spindle center to column: 37.4 in
Spindle nose: #50 taper
Spindle speed: 6000 RPM
Main spindle motor: 30 HP gear drive
2-speed gearbox
Magazine capacity: 24 ATC
Tool change time: 5 sec
Max tool diameter: 4.3 in / 7.9 in
Max tool weight: 15 lb
Rapid traverse rate (X/Y): 590 IPM
Rapid traverse rate (Z): 472 IPM
Cutting feedrate: 1 – 276 IPM
Chip conveyor
Floor space: 200 in × 143 in
Machine weight: 32900 lb
