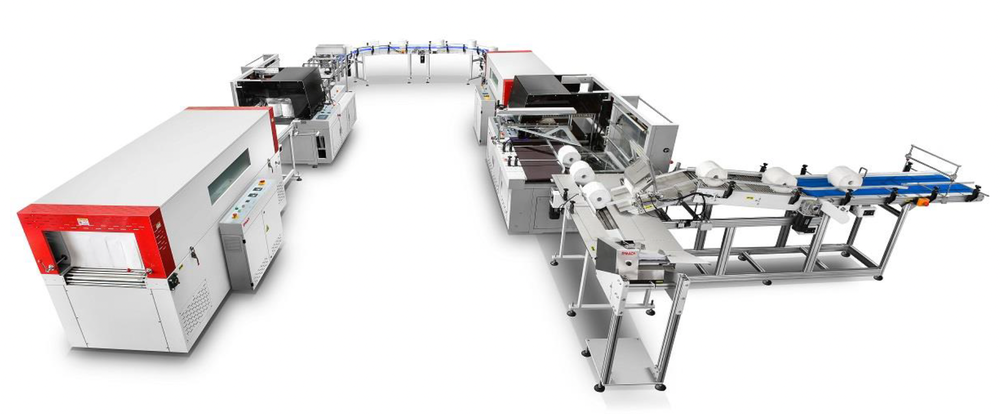

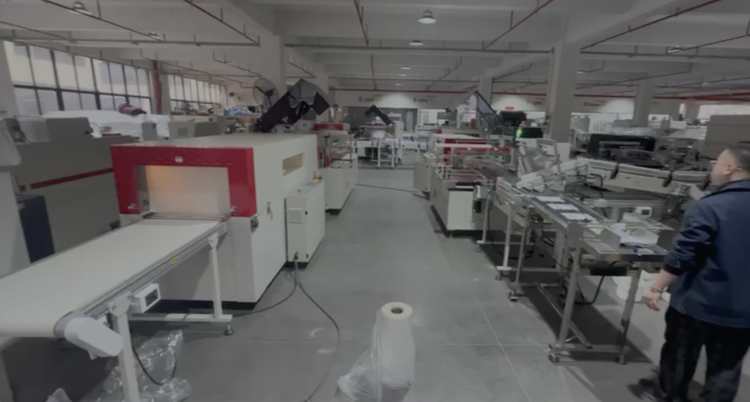

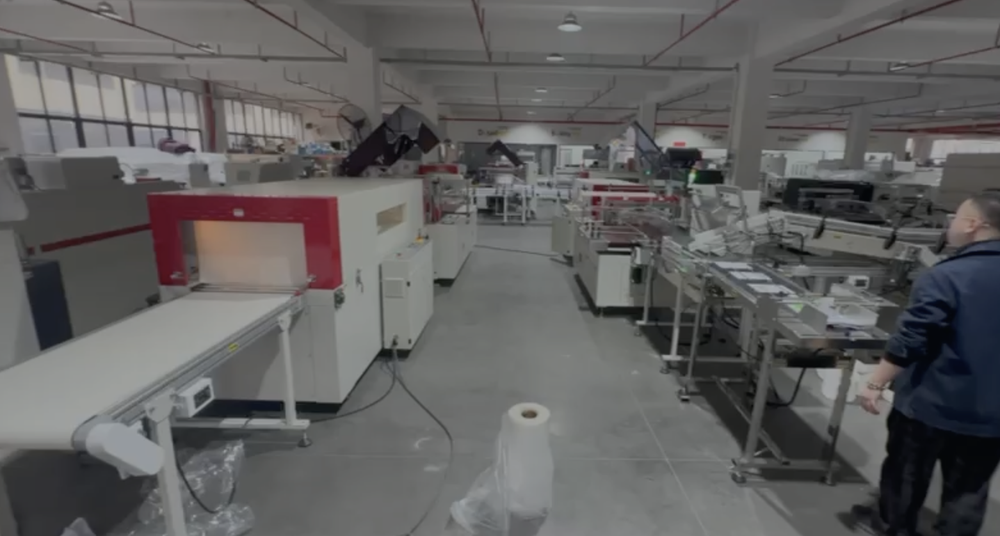

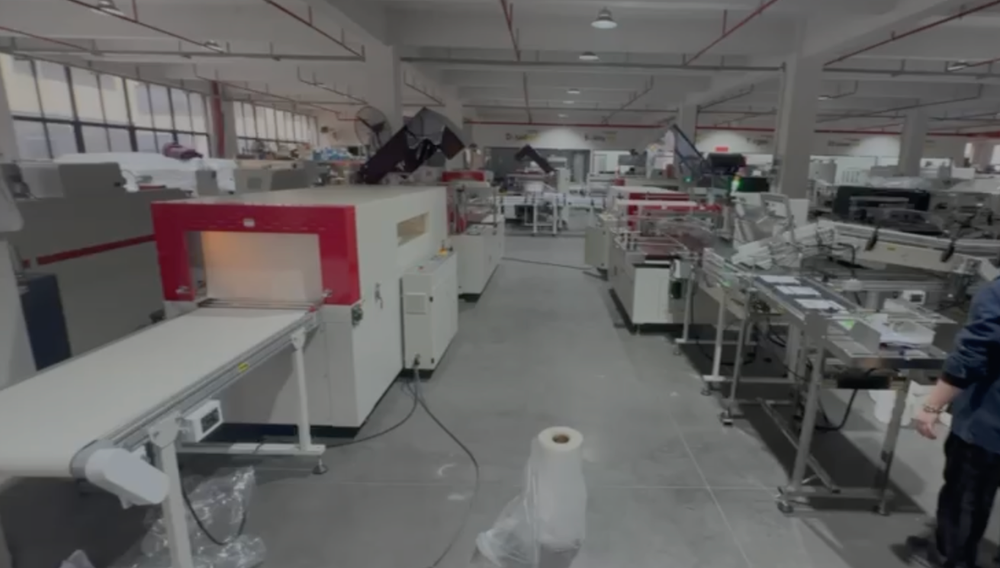

China 450 mm Consumer & Kitchen rolls packaging & bundling TR KTW 1,2,4,6 - complete line with shrink tunnel & conveyors

Complete line for sale consists 2 machines synchronized working - no separate sale possible - 1st owner purchased it in 2025 and wishing to resell it : only reason is that it uses POF film(Polyolefin) and they want now to switch to PE film i(Polyethylene) instead.

for toilet tissue rolls & kitchen towels packaging- shrink tunnel & conveyors/
bundling configurations 1 roll, 2 rolls, 4 rolls and 6 rolls

Chinese make
MODEL：RG-6525
For 6 roll pack it can support up to 22,5cm roll diameter.

Width supported 45 cm in total for 2 rolls side by side.

The film used is 75 cm center folded. (That is 150 cm unfolded)

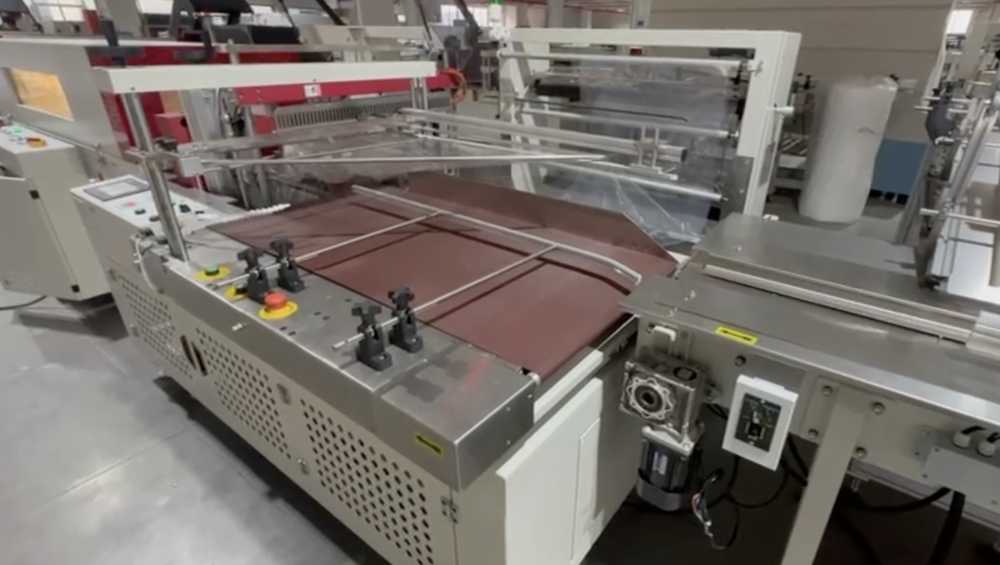

Sealing Type : Full cover side sealing machine
Installed Power : 220V; 60HZ; 1Phase
Packing Capacity : 15-35 packs per minute (depends on product length)
Sealing Height : 240 mm
Packing Width : 600 mm

Product Size Width + Height ≤640mm; Length: Infinite
Film Type : Center Folded POF Film
Max Film Roll Size: 830MM (Width) X 280MM (Outer Diameter)

Power Consumption 2.5 KW
Working Height 780-850 mm
Air Pressure : 0.5MPA (5 BAR)

Sealing Knife : Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
Machine Material :Carbon Steel
MODEL：RT-6030

Installed Power : 380V; 50-60HZ; 3Phase
Oven Size : 2000MM (L), Entrance 600(W) X 300(H) MM

Conveyor Speed : Variable
Conveyor : Chains with Rotating Silicon Coated Rods/ Mesh Belt Conveyor
Rated Power Consumption : 12 KW

Notes:
1. Works alsofo bigger and longer products such as: floor boards, wallpaper rolls, aluminum foil roll, maxi rolls, large carton, ladder, etc.

2. PLC touch screen control, operation can be done on the screen, machine with high production efficiency and easy to use.

3. Side sealing knife can be sealed continuously, the product packaging length is infinite, and the height of the side sealing knife can be adjusted by hand wheel.

4. Optional color film positioning function is available.

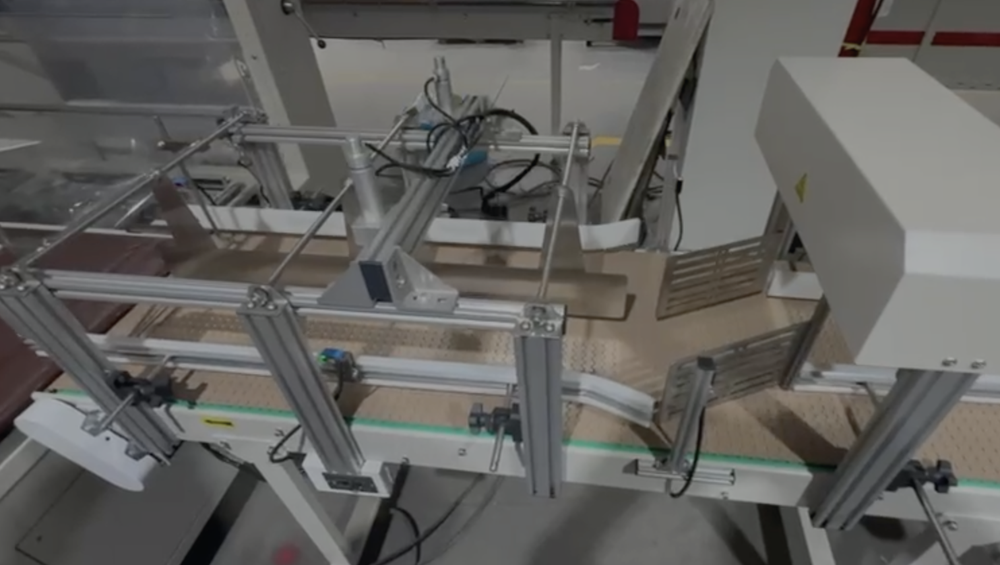

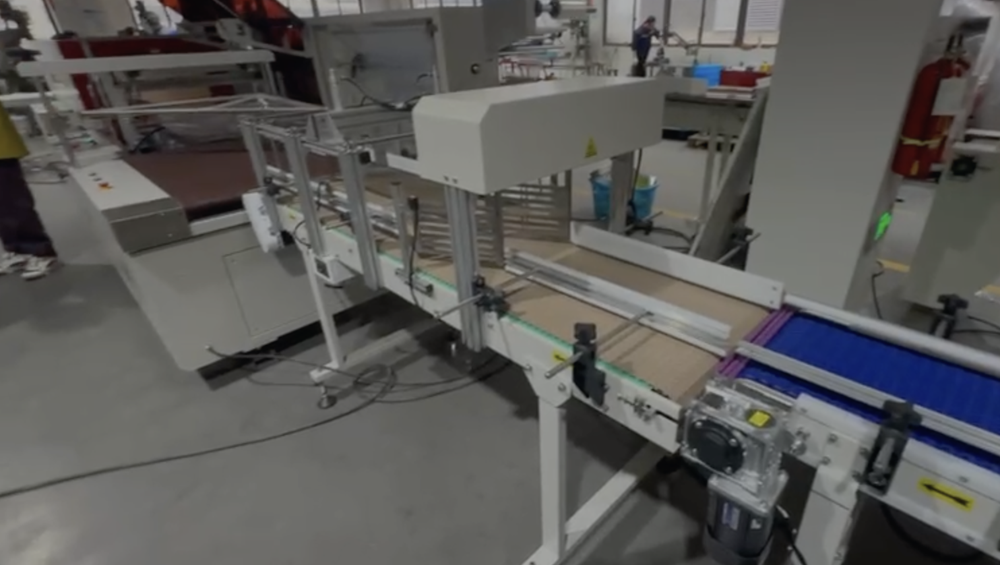

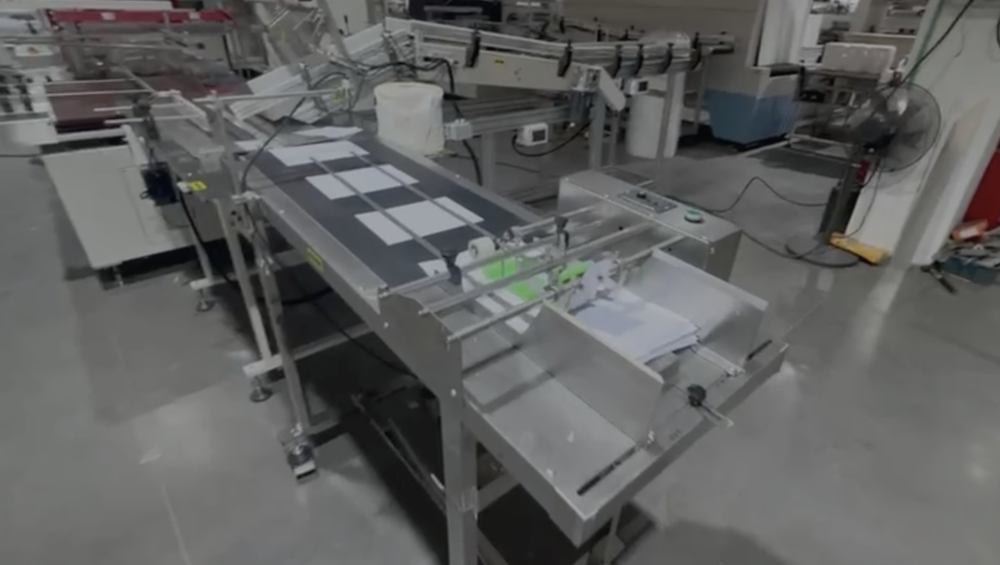

5. Infeed conveyor and output conveyor are available according to product needs.

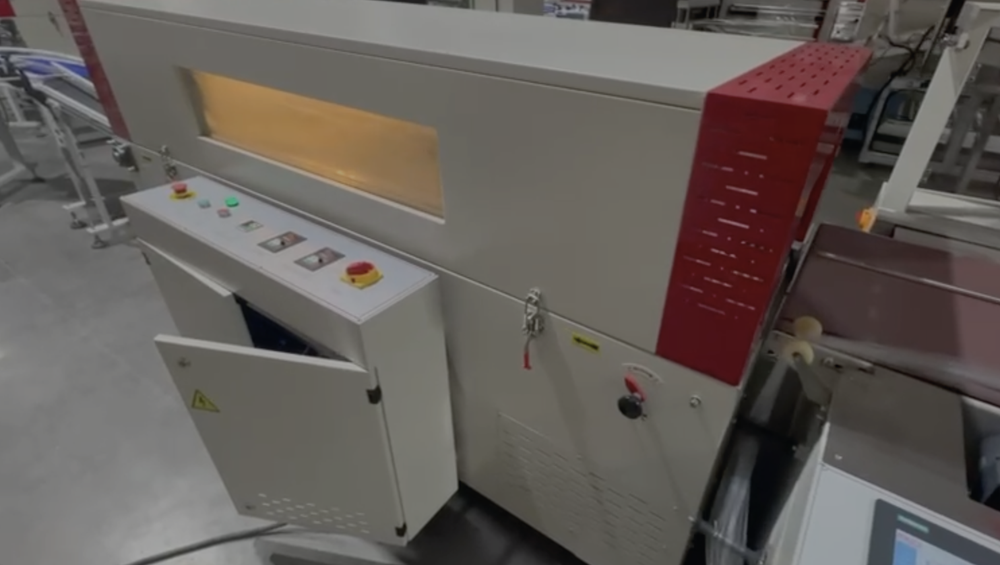

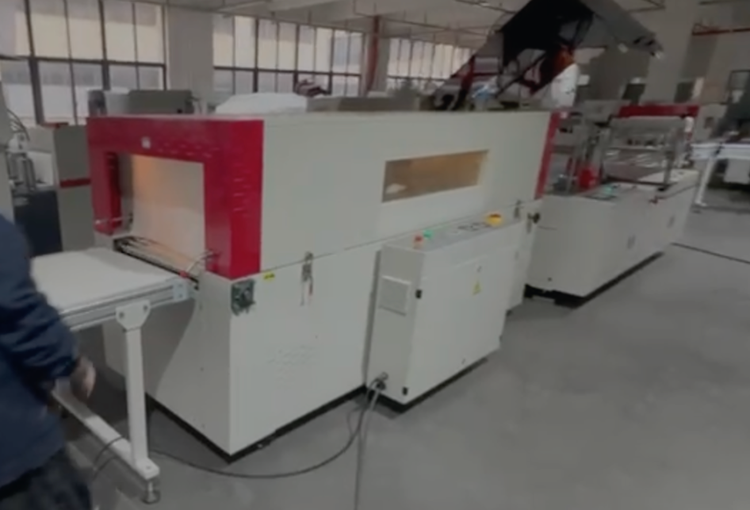

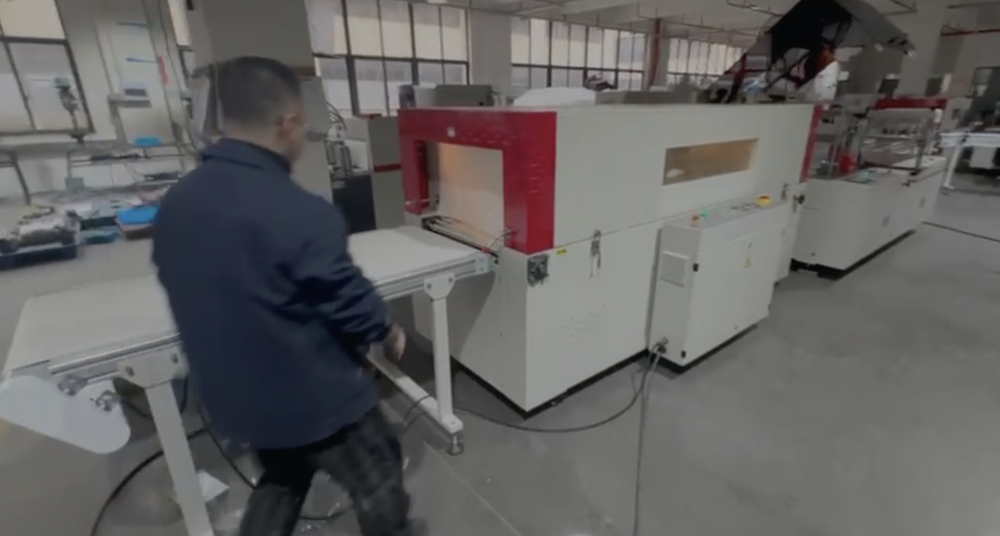

6. The heat shrink tunnel has a visible window, which can observe the product shrinkage in the furnace at any time.

7. Hot air circulation shrinkage tunnel makes the product shrinkage effect is flat and beautiful.

other makes details:
COLORFUL TOUCH SCREEN & PLC from SIEMENS GERMANY
TEMPERATURE CONTROLLER from OMRON JAPAN
PHOTOELECTRIC SWITCH from OMRON JAPAN
RELAY from SCHNEIDER GERMANY
SENSITIVE SWITCH from OMRON JAPAN
PNEUMATIC CYLINDER from AIRTAC
SOLENOID VALVE from AIRTAC
AIR COMBINATION VALVE from AIRTAC
SWITCH POWER from SCHNEIDER GERMANY
MOTOR WITH GEAR BOX from MAILI MOTOR
COLLECTING WASTE MOTOR from MAILI MOTOR
FILM MOTOR from MAILI MOTOR
BLOWER MOTOR from MAILI MOTOR
CONVEYOR MOTOR from MAILI MOTOR
FLAME RETARDANT TAPE from CHUKOH JAPAN

photos coming

please notet than When packaging toilet paper rolls, manufacturers often choose POF (Polyolefin) shrink film over PE (Polyethylene) film for several practical and commercial reasons.:

Reasons why you should prefre PO film as long as not heavy bundle:( here 1,2,4, 6 ony)

- POF film is crystal clear and glossy, which is better for shelf appeal
-Stronger & More Puncture-Resistant (for its Thickness) compared tp PE
-Better Shrink Performance: or toilet paper (a retail product), tight and neat appearance matters.

( but if you need heavy bundles, then better choos PE )
