Chiron FZ 15 S High Speed 5 Axis

5-axis CNC machining center

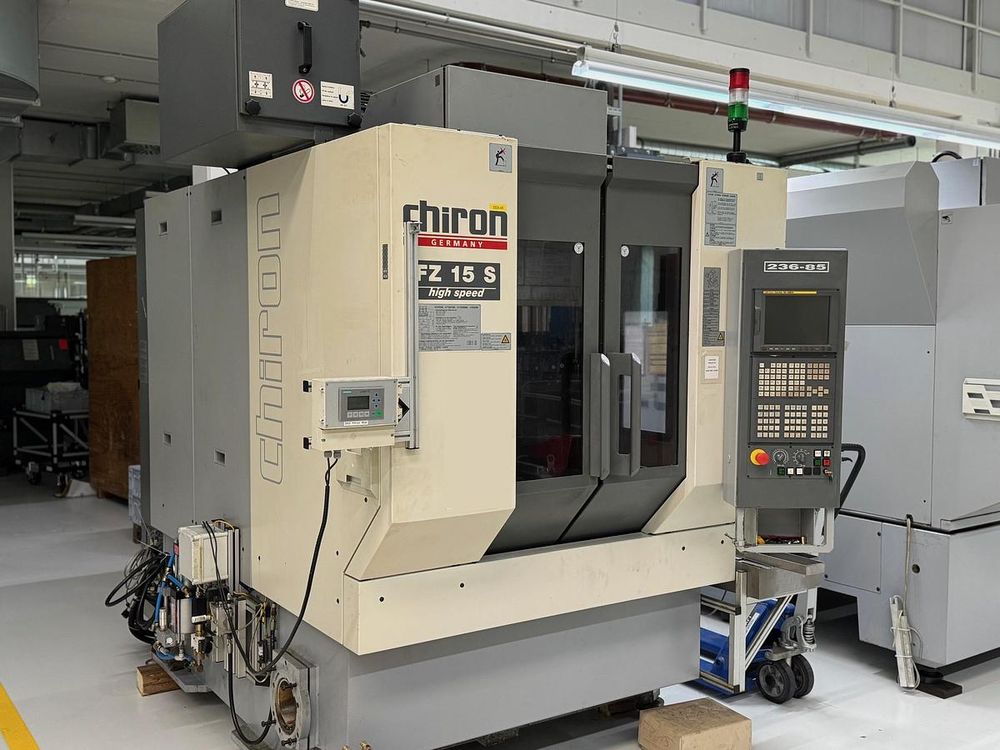

CHIRON - FZ 15 S High Speed
Year of construction 2007
Control FANUC Series 18i


Technical details
x-travel 550 mm
y-travel 400 mm
z-travel 425 mm

Main spindle:
Speed range 20 - 12,000 rpm
Drive power - main spindle 7.5 / 22 kW
Max. torque 140 Nm
Tool holder HSK 63 A

Fixed table:
Table clamping area 1,050 x 450 mm
Max. table load 500 kg
T-slots 2x 18 H12, 1x 18 H8

NC rotary table:
Table clamping area 610 x 240 mm
Center height 165 mm
Faceplate diameter 160 mm
Hole 4x M10

Tool changer:
Number of tool positions 20 pos.
max. tool diameter 65 mm
Max. tool diameter with free adjacent box: 175 mm
Max. tool weight 2.5 kg
Span - Span changeover time 2.1 sec
Tool-to-tool change time 0.9 sec

Feeds:
Rapid traverse (X / Y / Z) 60 m/min
Acceleration 1 g
Drilling capacity in St 60 - solid drilling 36 mm
Thread cutting M 24
Cutting volume 300 cm³/min
Total power requirement 18 kVA
Machine weight approx. 7.0 t
Space required approx. 4.5 x 2.5 x 3.2 m
