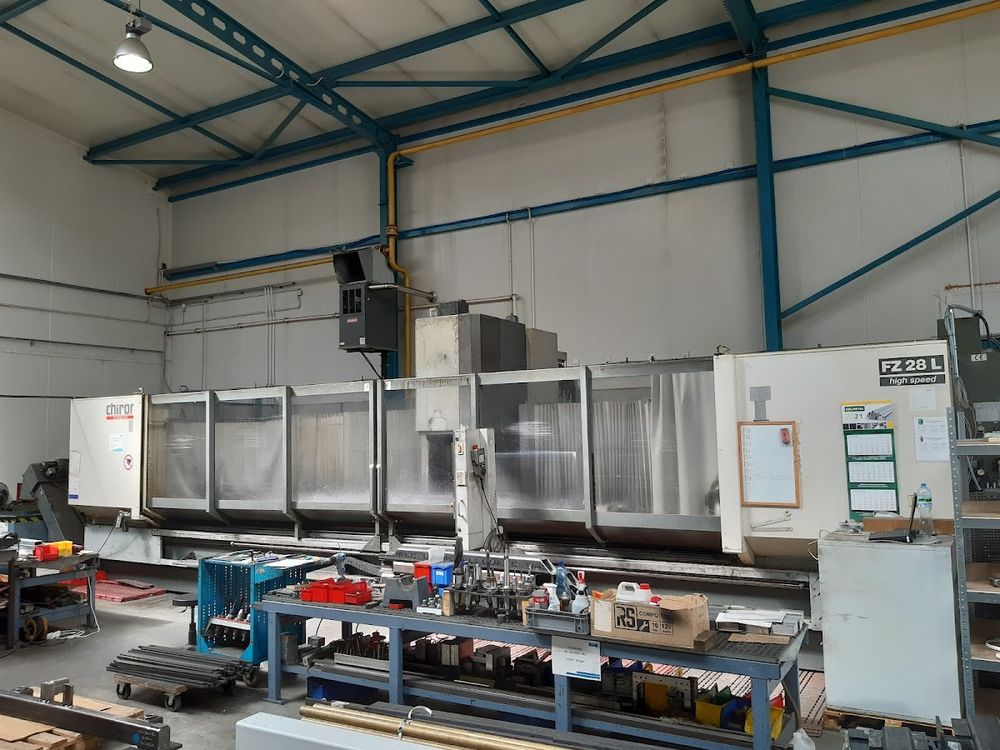

Chiron FZ 28 L

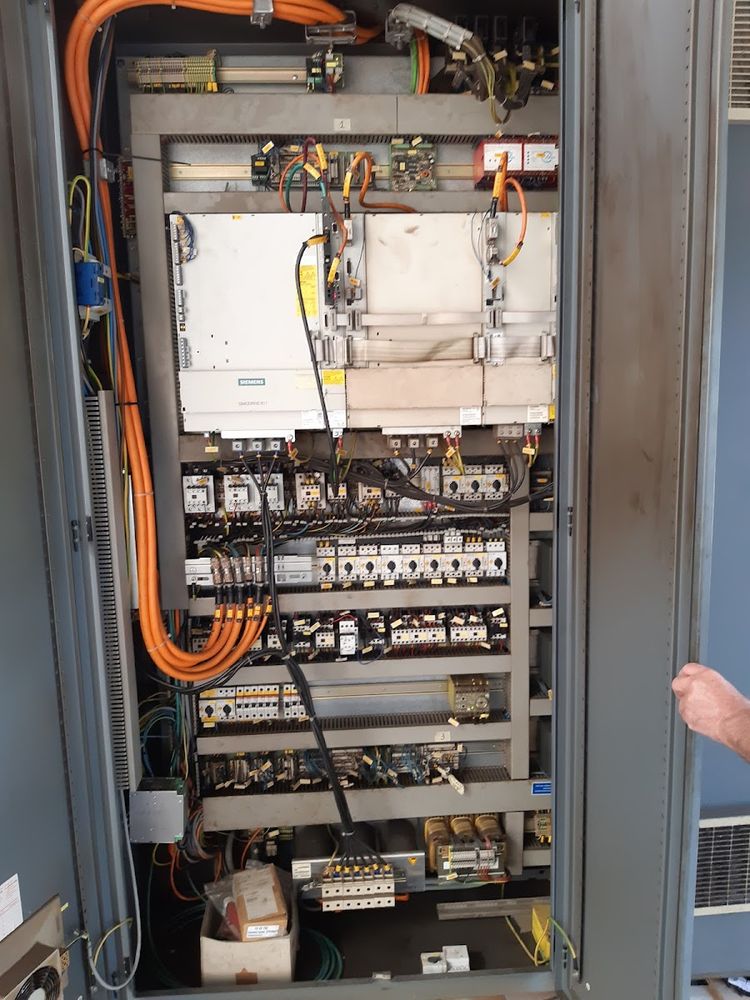

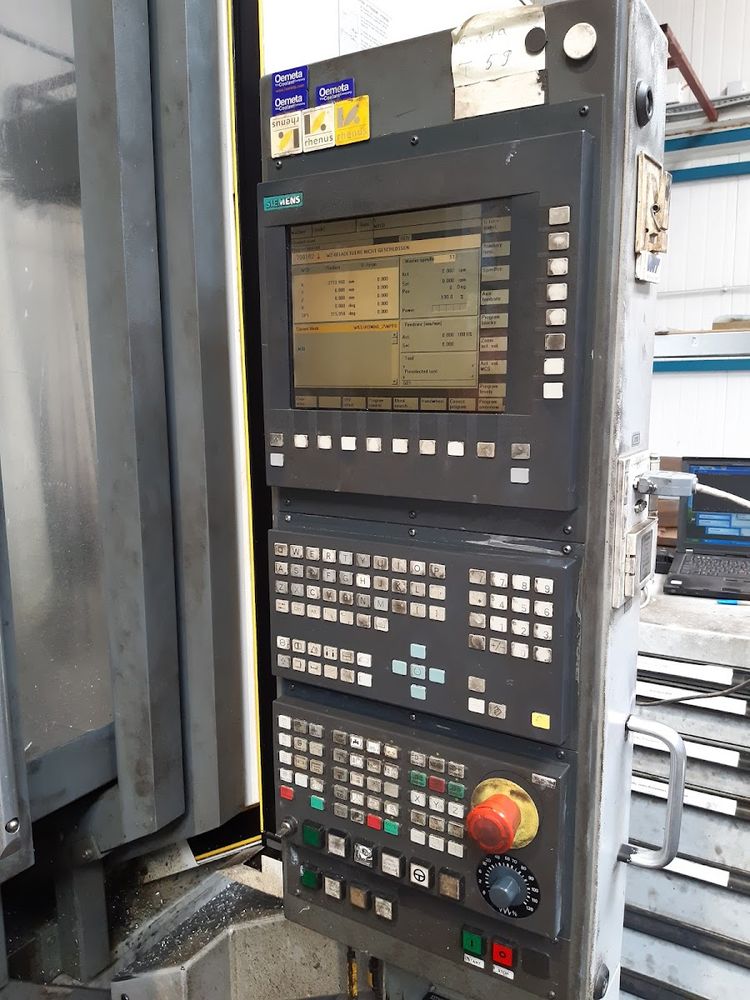

Control system Siemens Sinumerik 840 C
Clamping area of table 6300 x 680 mm
Travel X-axis 6300 mm
Travel Y-axis 660 mm
Travel Z-axis 800 mm
Spindle speed 0 - 10500 /min.
Number of driven axes 3
Cooling through spindle YES
Spindle taper ISO 50 .
Machine weight 26000 kg
Machine dimensions l x w x h 10000x2850x3300 mm

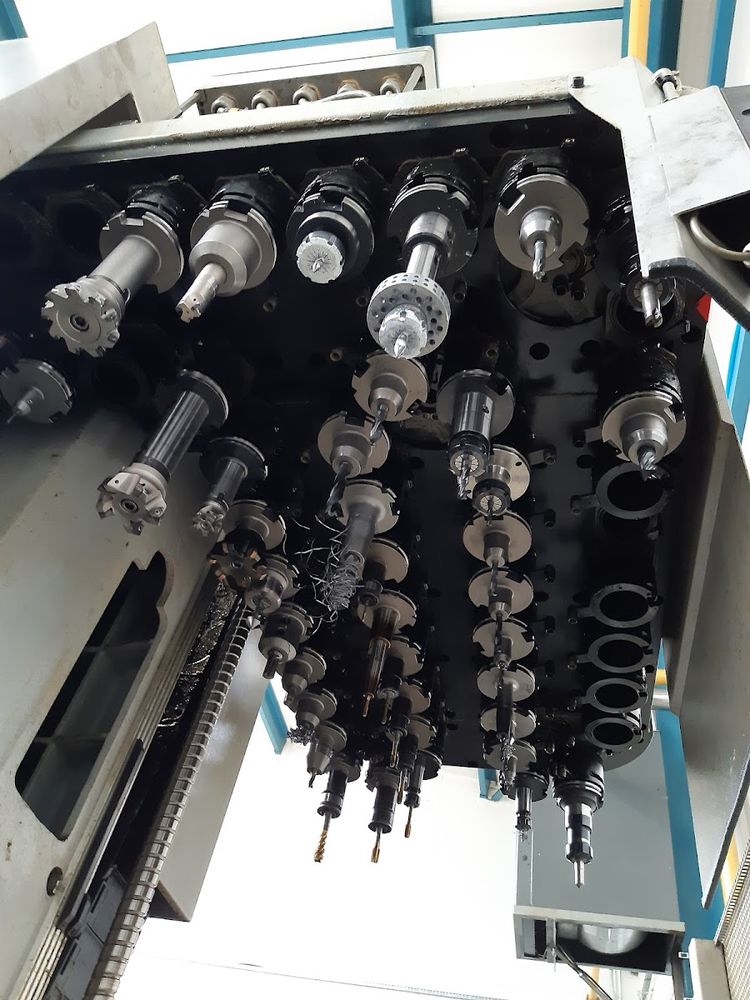

Tool magazine YES
Number of positions in magazine 40

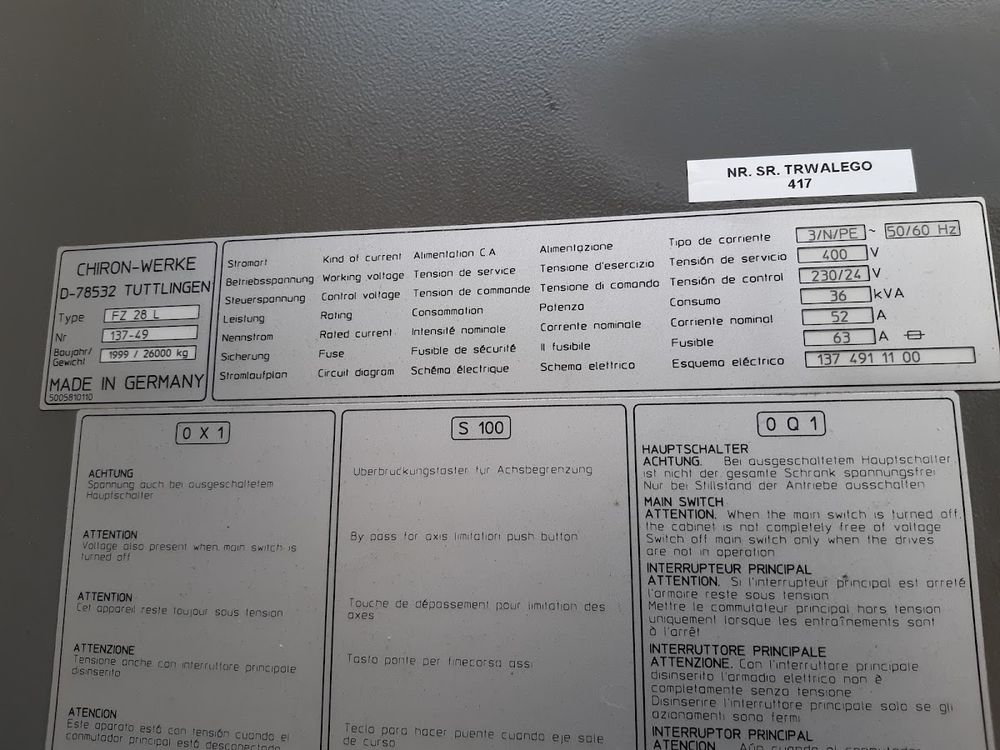

Total input 36 kVA

Very good technical condition, working in the accuracy of 0.02-0.05 mm, can be tested after previous agreement.

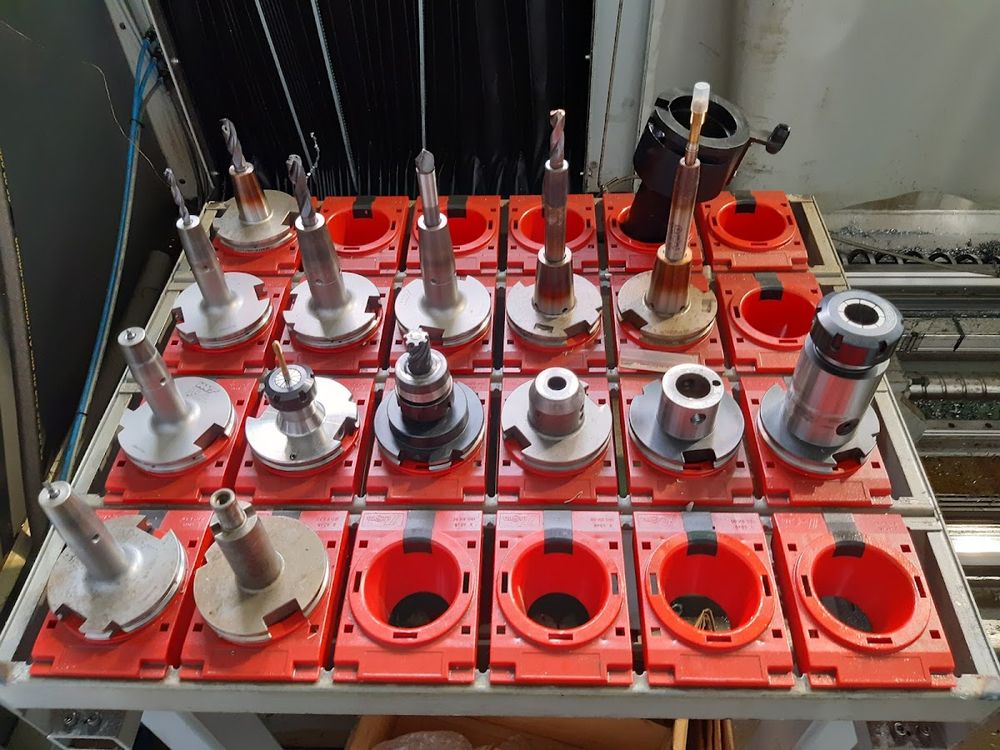

Concrete body of the machine, high-pressure cooling thru spindle, chip conveyor, holders and tools.

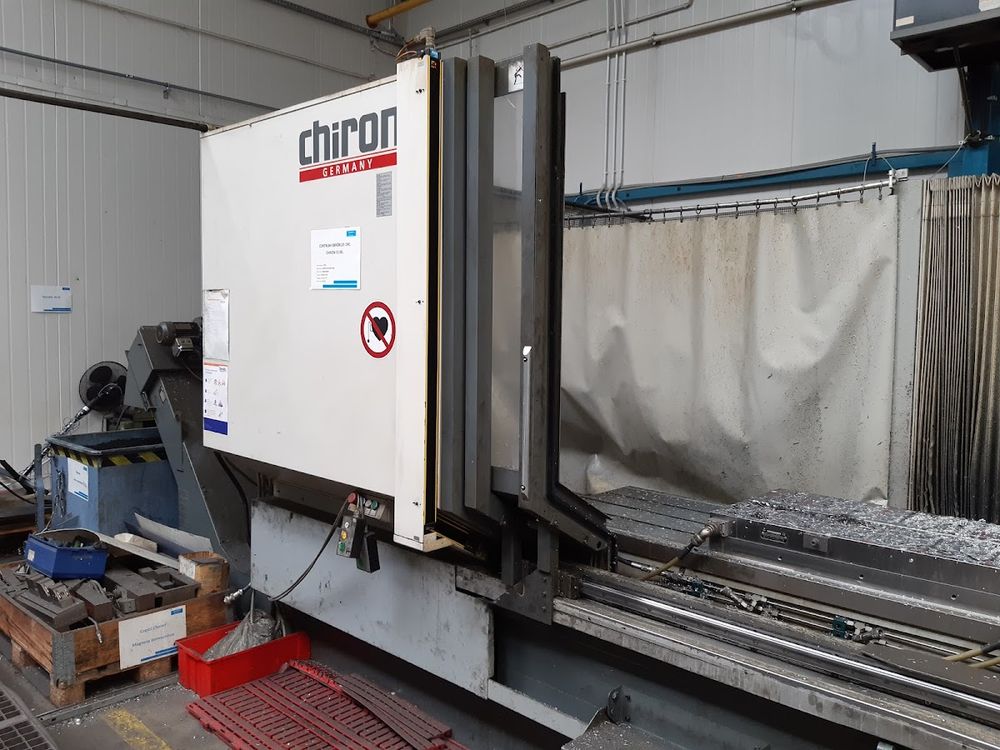

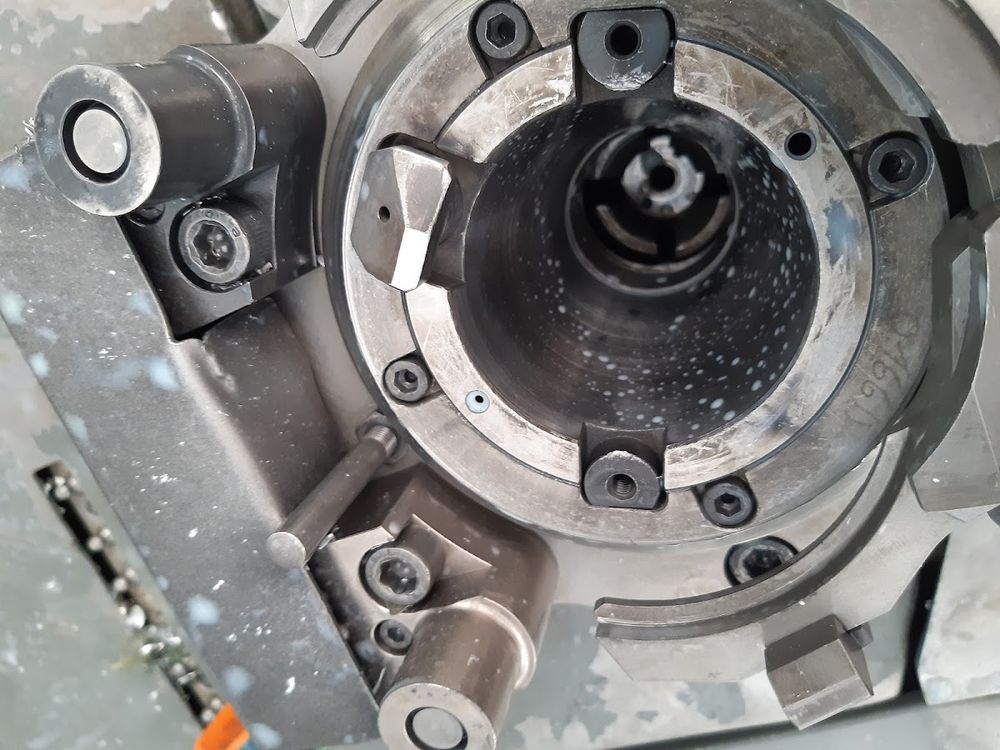

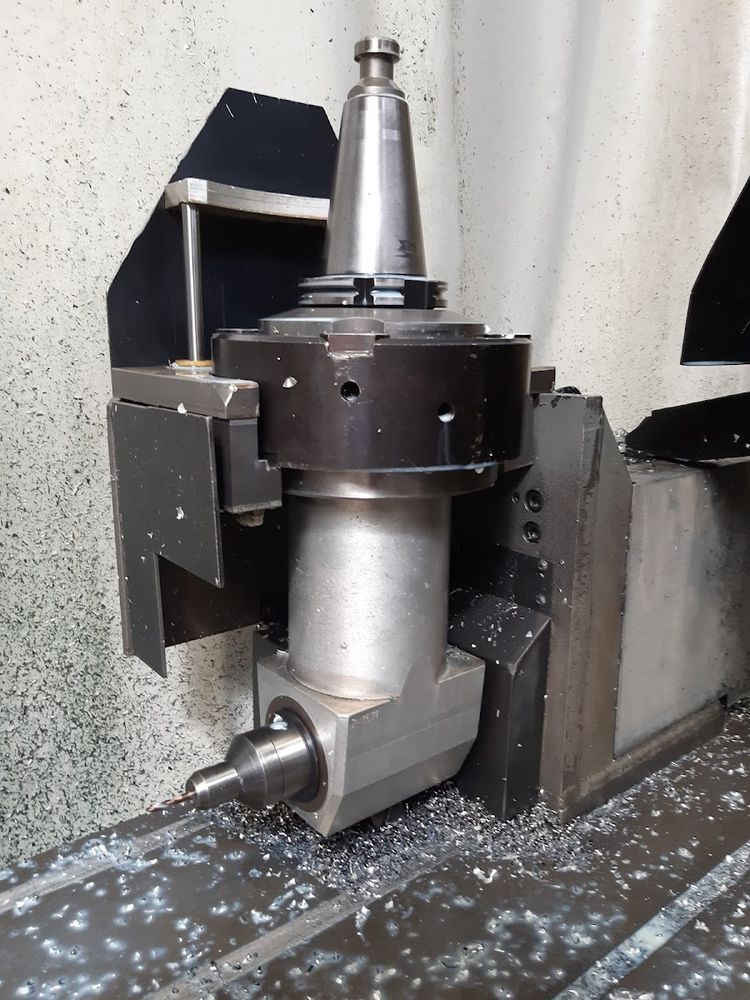

90-degree Benz head (for long flat workpieces), Tecnomagnete magnetic table.
