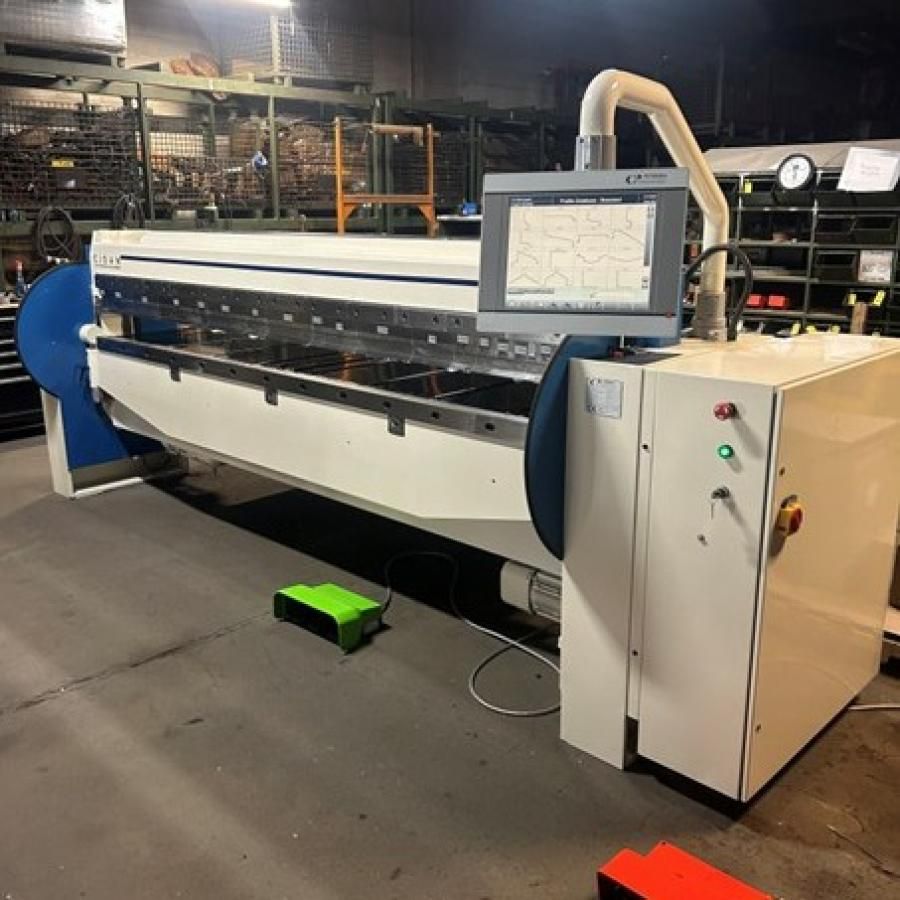

Cidan K25-30 Working length: 122"

Capacity mild steel: 14 gauge
Capacity stainless steel: 18 gauge
Capacity aluminum: 0.12"
Control: Pro-Link CNC touch screen
Control system: EasyLink with touch screen
Backgauge: 61"
Motorized backgauge
Backgauge height adjustment: 0–40 mm
Feed system: ball transfers in backgauge table
Clamping beam: straight rail 30
Lower beam rail: 30
Folding beam rail: double sided 7/10 mm
Folding beam rail: 20 mm
Folding beam rail: 25 mm or 30 mm
Round folding rail: R=2.5 / 5 / 10 mm
Quick change tooling: bayonet style
Combi clamping beam: 30 straight rail
Box tooling height: 103 mm
Box tooling radius: 1 mm
Multifold tooling execution with divided lower beam
Lower beam height: 42 mm
Divided folding beam rails: 10 mm and 20 mm
Straight rail and box tooling radius kit: 0.75 mm
Manual crowning of folding beam rail
Manual front crowning bend bar adjustment
Light duty bending bars
Heavy duty bending bars
Full set of combi tools
Segment size: 24"
Segment size: 20"
Segment size: 18"
Segment size: 15"
Segment size: 12"
Segment size: 8"
Segment size: 4"
Segment size: 3"
Segment size: 2.750"
Segment size: 2.375"
Leg out left: 2.375"
Leg out right: 2.250"
Leg out right: 2"
Leg out right: 1.75"
Leg out right: 1.50"
Leg out right: 1"
Squaring arm
Frequency/servo driven motors for clamping and folding beams
Hardened rails and tools undivided HRC 45
Hardened rails and tools divided HRC 55
Automatic lubrication
Electric foot switch
Movable foot switch on rail
Extra foot pedal with key switch
Transformer included
Manual included
Offline program for ProLink
Movable tool cart for divided tools
Machine weight: approx. 9500 lbs
