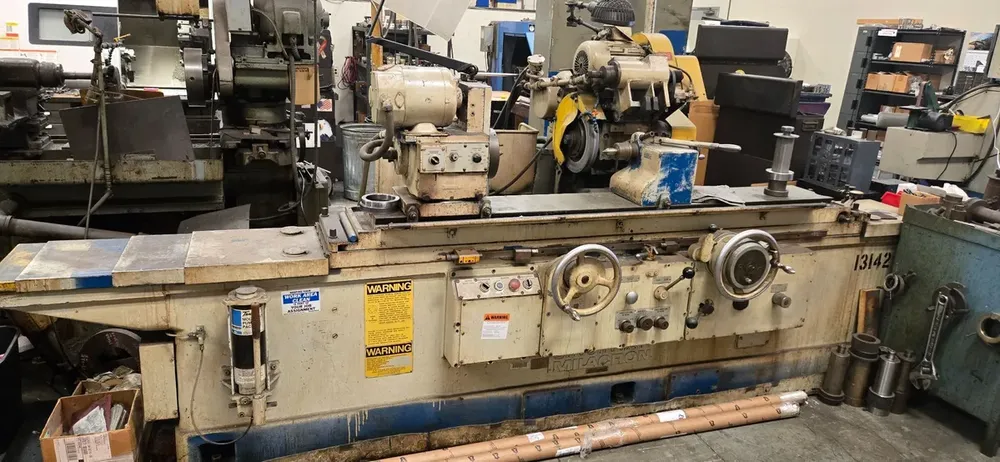

Cincinnati 14 × 48 DE

Swing: 14.94 in
Distance Between Centers: 48 in
Maximum Grinding Diameter: 14 in
Minimum Grinding Diameter: 0 in
Distance from Floor to Centers: 42.25 in
Wheelhead Swivel: +10° / -3°
Table Taper Swivel: +4.5° / -1.25° per ft
Lower Swivel Range: ±90°
Upper Swivel Range: ±30°
Grinding Wheel Size: 14 × 2 × 5 in
Automatic Infeed at Table Reversal
Diameter Reduction: 0.0002–0.005 in
Diameter Reduction (High): 0.005–0.0125 in
Cross Feed per Handwheel Revolution (Low): 0.050 in
Cross Feed per Handwheel Revolution (High): 0.250 in
Headstock and Tailstock Taper: #9 B&S
Variable Workhead Speed
Headstock Spindle Nose: 5 in
Headstock Swivel: +90° / -30°
Infinite Table Traverse Speeds
Table Traverse Speed: 3–240 in/min
Minimum Table Reversal Movement: 3/32 in
Table Reversal Accuracy: 0.004 in
Right and Left Dwell Time: 0–5 sec
Rapid Hand Table Traverse: 15/16 in/rev
Slow Hand Table Traverse: 0.2 in/rev
Grinding Wheel Motor: 7.5 HP
Grinding Wheel Speed: 1730 rpm
Hydraulic Pump Motor: 1 HP
Workhead Motor: 0.75 HP
Coolant Pump Motor: 0.25 HP
Lever-Operated Tailstock
Truing Attachment
Left and Right Table Dwell
Self-Contained Coolant System
Self-Contained Hydraulic System
Table Traverse
Variable-Speed Headstock
Tailstock Dresser
