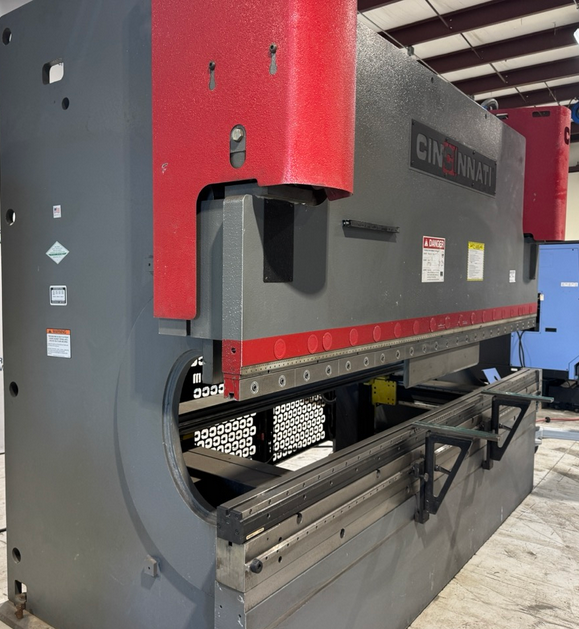

Cincinnati 175BX10 / 175B x 10 175 tons

Forming length 10'
Cincinnati Baseform CNC multi-axis touchscreen control
Y1 / Y2 synchronized hydraulic ram control
CNC multi-axis backgauge
CNC crowning
Stroke 10"
Open height 17"
Closed height 7"
Throat clearance 16"
Approach speed 300 IPM
Forming speed 10–24 IPM
Return speed 80–190 IPM
Foot pedal
CNC-controlled hydraulic operation
Overall bed / ram length 10'
Distance between housings 8'–8'6"
Approx. machine height 113.5"
Approx. weight 20,000–25,000 lbs
