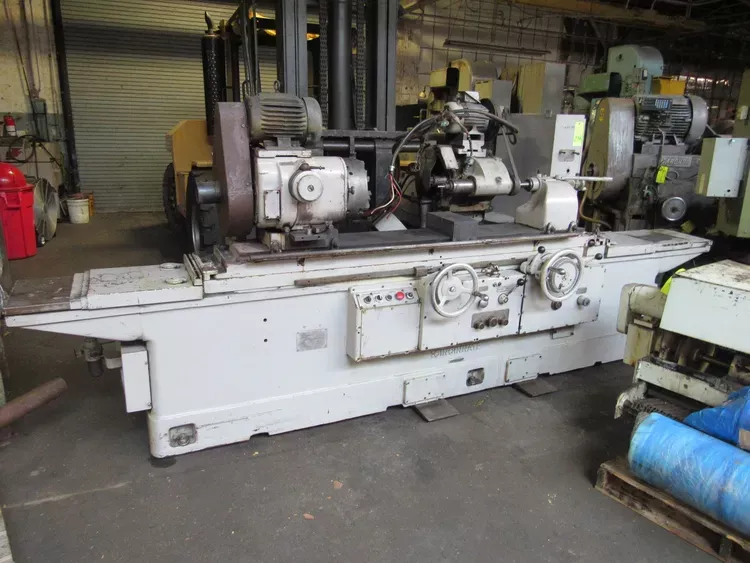

Cincinnati 18 X 48

Maximum swing over table: 18.9375 in
Maximum grinding diameter: 18.9375 in
Minimum grinding diameter: 0 in
Distance between centers: 48 in
Distance from floor to centers: 44.375 in
Table swivel toward wheel head: 9°
Table swivel away from wheel head: 2°
Taper per foot toward wheel head: 3.75 in
Taper per foot away from wheel head: 1 in
Lower wheel head swivel range: ±90°
Upper wheel head swivel range: ±30°
Grinding wheel size: 14 × 2 × 5 in
Automatic infeed at table reversal (low): 0.0002–0.005 in
Automatic infeed at table reversal (high): 0.0005–0.0125 in
Wheel head movement per handwheel turn (low): 0.050 in
Wheel head movement per handwheel turn (high): 0.025 in
Minimum infeed increment: 0.00005 in
Workhead taper: No. 10 Brown & Sharpe
Workhead speed range: 25–200 rpm
Workhead spindle nose: 6 in
Table traverse speed range: 3–220 in/min
Table reversal accuracy: 0.004 in
Table dwell time left: 0–5 s
Table dwell time right: 0–5 s
Grinding motor power: 5 hp
Hydraulic pump motor power: 1.5 hp
Workhead motor power: 1 hp
Internal grinding motor power: 2 hp
Coolant pump motor power: 0.25 hp
Machine footprint length: 184.25 in
Machine footprint width: 72.75 in

Swing-down internal grinding spindle
Left dwell function
Right dwell function
Pick feed
Live center headstock
Dead center headstock
Upgraded electrical panel
Coolant system in base
Tailstock dresser
12 in 3-jaw chuck
Variable speed headstock
