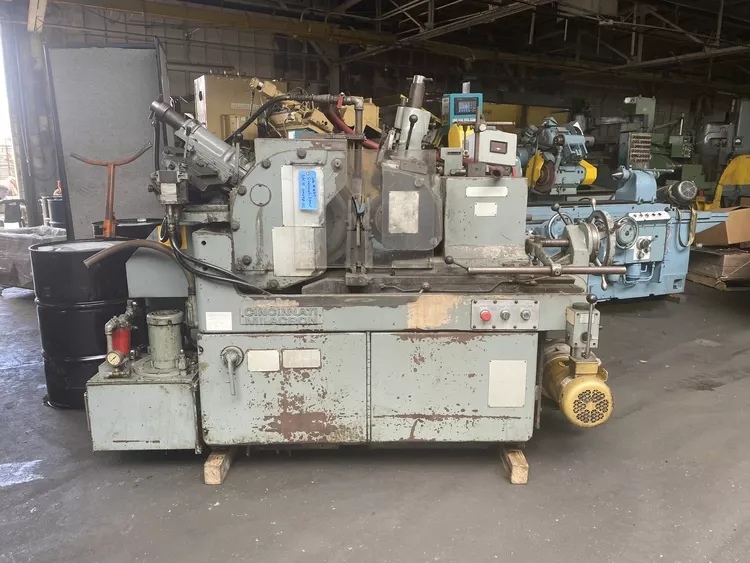

Cincinnati 2 OMV

Centerless Grinder
20" OD Grinding Wheel
8" Thrufeed Workrest
Work diameter capacity 0 to 4.5"
Work diameter using standard work rest 0.062 to 3"
Grinding wheel max size 20" diameter x 12 hole x up to 8" wide
Grinding wheel min size 15" diameter
Grinding wheel surface speed 6,500 SFPM
Regulating wheel max size 12" diameter x 5 hole x up to 8" wide
Regulating wheel min size 9" diameter
Regulating wheel speed infinitely variable 12 to 300 RPM
Standard drive motor for grinding wheel 15 HP
Coolant tank capacity 50 gallon
Coolant pump capacity 30 gallon per minute
Floor space 88" L-R x 58" F-B x 62" Height
Approximate weight 8,500 lbs
Rugged cast iron construction
Filmatic grinding wheel spindle mounted directly to machine bed
Automatic lubrication to grinding and regulating wheel spindles
Sturdy swivel plate supporting double slide infeed system
Infinitely variable hydrostatic drive for regulating wheel spindle
Manual slide positioning with T-handle and/or hand wheel actuated infeed screw
Hydraulic power for regulating wheel optional
One set of machine documentation including operator and parts manual
230V or 460V, 3 phase, 60 Hz electrics
