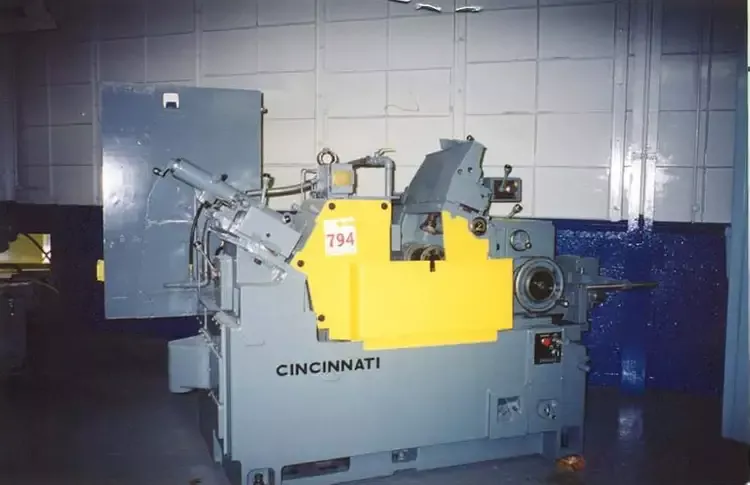

Cincinnati 220-8 LR

Centerless Grinder
Hydraulic Profile Truing on Both Wheels
20" Grinding Wheel
Auto Wheel Balancer
Reconditioned
Standard Thru Feed and Infeed Work Rest: 0 to 3" dia.
Maximum Work Diameter: 4 3/4" dia.
Grinding Wheel: 12 Hole, 1 to 8" Widths, 20" Max Dia., 15" Min
Regulating Wheel: 5" Hole, 1 to 8" Widths
Grinding Wheel Spindle: High grade alloy steel, Heat treated, Filmatic bearings self-adjusting, Plain thrust bearings in center, Automatic circulating lubrication
Regulating Wheel Spindle: Infinite number, Range 11 to 300 RPM, Low range 11 to 56 RPM, High range 56 to 300 RPM
Grinding Wheel Drive: 20 HP, Enclosed motor, 60 cycle 3 phase, 230/460 dual voltage, 6 V Belts
Regulating Wheel Drive: 1 1/2 HP, 1200 RPM, 230/460 dual voltage AC, V Belt and chain, Variable pitch sheaves & gear shift
Cutting Fluid Pump Capacity: 30 GPM
Cutting Fluid Tank Capacity: 75 gallons
Wheel Truing: Independent truing for each wheel, Hydraulic profile diamond truing for grinding wheel, Hydraulic profile diamond truing for regulating wheel
Auto Wheel Balance
Coolant Tank & Pump
Gibbed Way Upper and Lower Slide
Floor Space: 95" X 127 1/2"
Approximate Weight: 12,000 lbs
