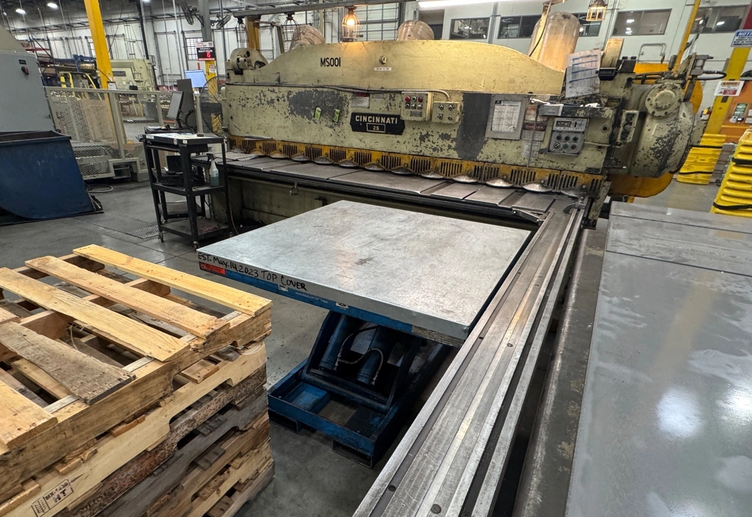

Cincinnati 2512

Press Capacity: 3/8" × 12'
Blade Length: 12' 4"
Gap Length: 18"
Rake: 9/32" per foot
Ram Adjustment: 11/16"
Hold-Down to Knife Edge: 7/8"
Distance Under Hold-Downs: 11/16"
Total Hold-Down Pressure: 13 ton
Strokes: 50 SPM
Motor Power: 20 HP
Electrical: 208/230/460 V, 3 Phase, 60 Hz
Overall Dimensions: 15' 8" × 7' 3"
Overall Height: 7' 2"
Weight: 33,300 lbs
Cincinnati Stacking System
72" Squaring Arm
36" Front Operated Manual Back Gauge
