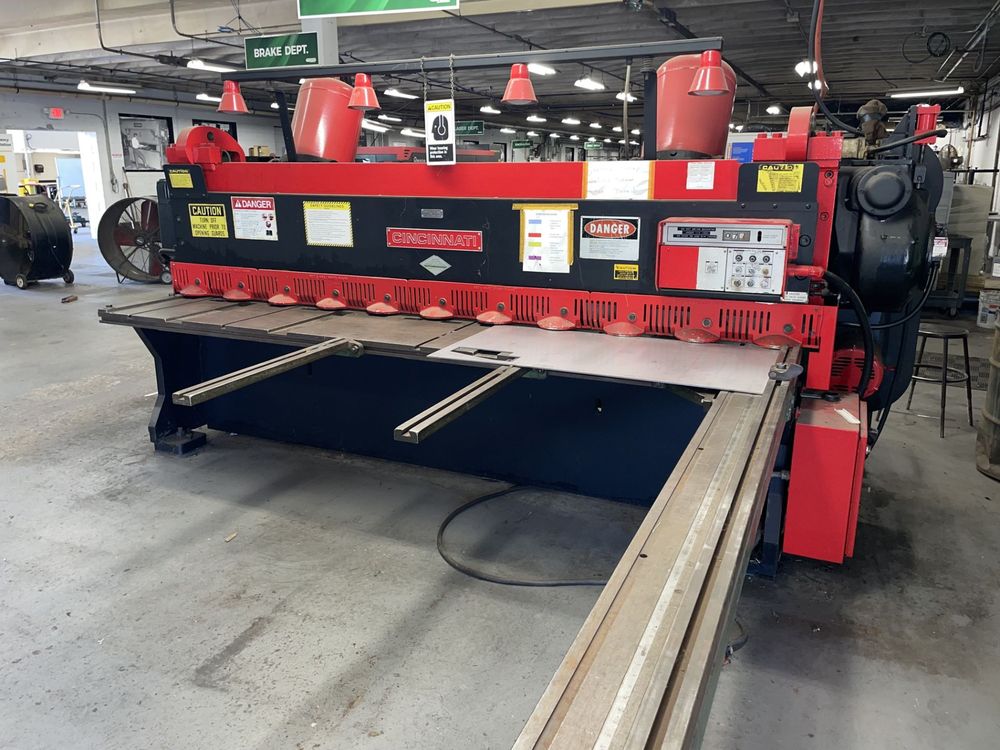

Cincinnati 2CC10 Power Squaring Shear

Capacity: 1/4"
Distance between housing: 10'3"
Back gauge range: 0-36"
Rake taper per foot: 1/4" P/FT
Strokes per minute: 60
Holddowns: 11
Gap (between housing & table): 4"
Main drive motor: 7.5 HP
Front operated powered back gauge
Support arms
Squaring arm
Electric foot switch
Automatic pressure lubrication
Interlocked steel construction frame
Light bar
Non-float inclined ram
Main motor: 230/460/360 V, 7.5 HP, 3 PH
