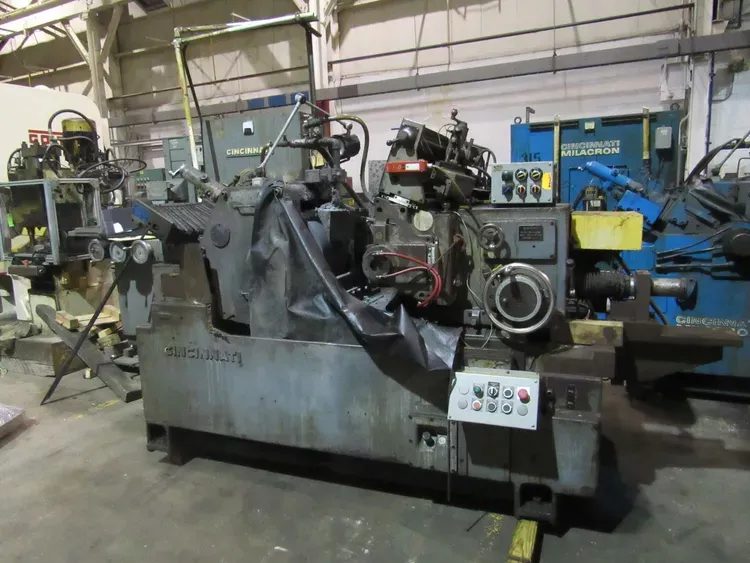

Cincinnati 325-12

Capacity (standard thru feed & infeed work rests): 1/2 in – 3 in dia
Maximum work diameter: 6 in
Bar grinding capacity (Type V solid bars): 1/16 in – 1 1/2 in dia
Bar grinding capacity (Type V modified): 1 1/2 in – 2 1/2 in dia
Bar grinding capacity (Type C solid bars): 1/2 in – 2 in dia
Bar grinding capacity (Type C hollow tubes): 1/2 in – 4 in dia
Grinding wheel diameter: 24 in max
Grinding wheel diameter: 16 in min
Grinding wheel width: 8 in – 12 in
Grinding wheel hole: 12 in
Grinding wheel power: 25 hp
Grinding wheel speed: 60 rpm
Grinding wheel drive: 8 V belts
Regulating wheel diameter: 14 in max
Regulating wheel diameter: 10 1/4 in min
Regulating wheel width: 8 in – 12 in
Regulating wheel hole: 6 in
Regulating wheel power: 2 hp
Regulating wheel speed: 11 – 300 rpm (60 cycle)
Regulating wheel speed: 12 – 315 rpm (50 cycle)
Regulating wheel drive: 8 V belt and chain
Cutting fluid pump capacity: 30 gpm
Cutting fluid tank capacity: 75 gallons
Floor space: 95 1/4 in x 140 3/8 in
Machine weight: 15500 lbs
