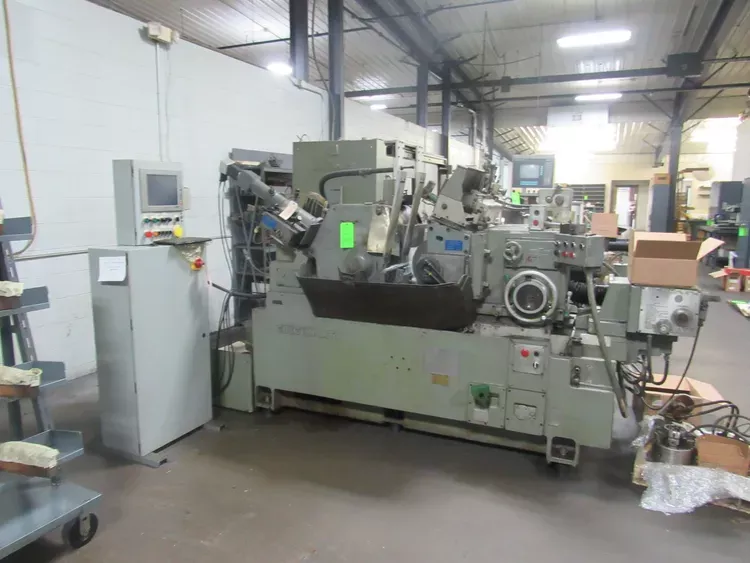

Cincinnati 330-15

Capacity: 3"
Maximum diameter machine will grind: 6"
Grinding wheel diameter: 24"
Regulating wheel diameter: 14"
Grinding wheel motor power: 30 HP
Regulating wheel motor power: 2 HP
Regulating wheel speed: 1,200 RPM
Grinding wheel spindle: high grade alloy steel, ground, coated, cartridge type with self-adjusting Filmatic bearings, automatic circulating lubrication
Regulating wheel spindle: high grade alloy steel, ground, coated, two-piece bronze bearings each side, rear support bearing, anti-friction thrust bearing, automatic pressure lubrication
Grinding wheel drive: enclosed motor, 30 HP, constant speed, 8 V belts
Regulating wheel drive: motor on upper slide, 2 HP, variable pitch sheaves & gear shift, V belt and chain
Bar grinding fixtures Type V: solid bars 1/2"–1 1/2"
Bar grinding fixtures Type V: modified/light walled 1 1/2"–2 1/2"
Bar grinding fixtures Type C: lengths up to 24" solid bars 1/2"–2"
Grinding wheel truing: independent hydraulic diamond profile
Regulating wheel truing: independent hydraulic diamond profile
Cutting fluid pump capacity: 90 GPM
Cutting fluid tank capacity: 150 gallons
Outboard support regulating wheel
Auto profile regulating and grinding wheel dresser with Accudrive motor
Trabon lubrication system
Machine dimensions L x W: 109" x 158 1/16"
Weight: 16,700 lbs
