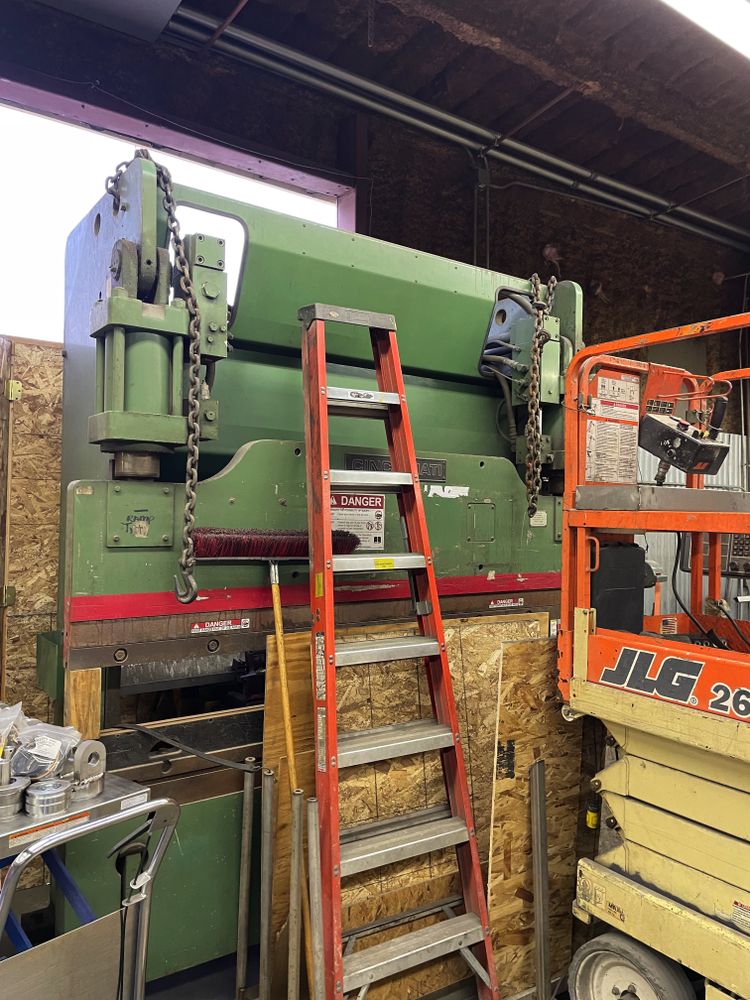

Cincinnati 90CBII 90 t

Press force: 90 t
Maximum bending length: 8 ft
Distance between housings: 8 ft 6.75 in
Stroke: 8 in
Open height: 15 in
Closed height: 7 in
Throat depth: 7 in
Approach speed: 260 in/min
Working speed: 10–20–80 in/min
Return speed: 280 in/min
Bed width: 3.5 in
Control: Cincinnati CBII CNC
CNC backgauge
Transducer positioned feedback
Narrow filler block
Link Black Max light curtains
Electric foot switch
Pedestal palm button station
Interlocked construction
Clevis-mounted self-aligning cylinders
Power: 15 hp
Weight: 13300 lb
Machine dimensions: 8 ft 6.5 in × 50 in × 110 in
