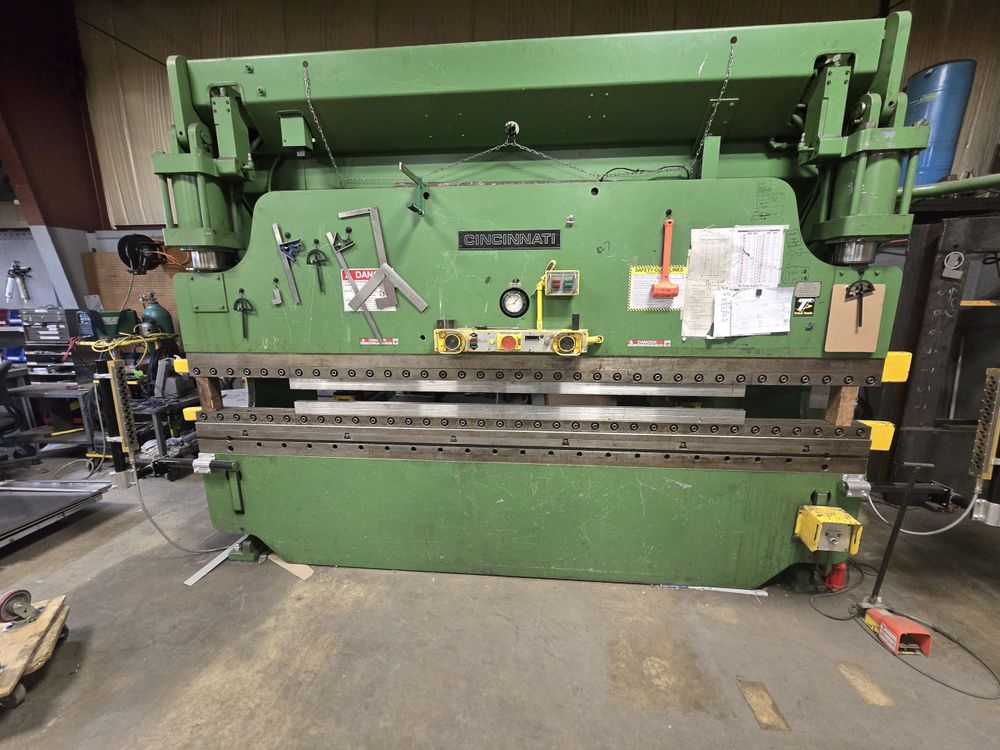

Cincinnati AS90X10 90 tons

Tonnage capacity 90 tons
Overall bending length 144" (12 feet)
Distance between side housings 126.5" (10 feet 6.5")
Stroke length 8"
Open height 15"
Closed height 7"
Throat depth 7"
Ram speed approach 312–380 IPM
Ram speed forming 15–120 IPM
Ram speed return 294–405 IPM
Backgauge travel 24" programmable X-axis
Main motor 17.5–25 hp, 220/440V, 3-phase
Bed width (top surface) 3.5"
Machine weight 8,800 lbs
Footprint 150" L × 60" D × 96" H
Upgraded touchscreen controls 2024
Both cylinders rebuilt 2024
4-way valve replaced 2024
Oil changed 2024
Electronics and control updated 2024
Hydraulic upper and lower clamps
Protect light curtain
Ethernet connection, runs Windows 10
Programmable remotely with server access, 512GB onboard storage, remote support available
Wired for 240V 3-phase @ 45A (60A breaker/fuse)
