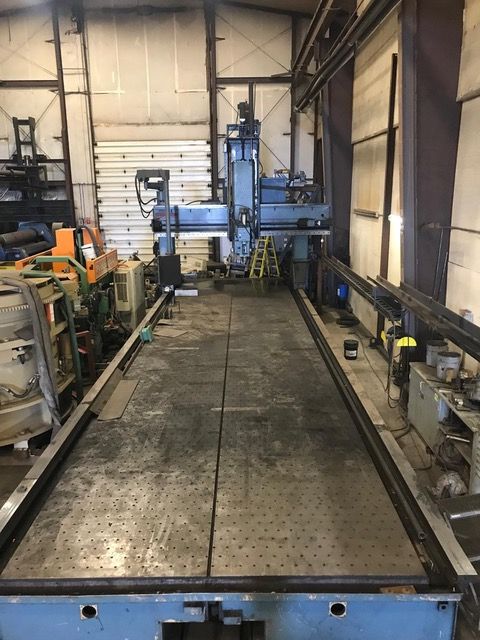

Cincinnati BRIDGE / DOUBLE COLUMN GANTRY CNC MACHINING CENTER 4 Axis

Ref : 2790702-3-CP

Condition : Used

Manufacturer : Cincinnati

Model : BRIDGE / DOUBLE COLUMN GANTRY CNC MACHINING CENTER

Nb Of Axis : 4 Axis

Year(s) : 1981

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

X-axis travel: 430″
Y-axis travel: 120″
Z-axis travel: 48″
A-axis: manual tilt ±25°

Control: Delta Tau Delta Systems CNC (Windows-based)
Ballscrews on Y-axis
Ballscrews on Z-axis
Rack and pinion on X-axis

Spindle speed: 3000 rpm
Spindle motor: 10 HP
Spindle taper: 50 taper

Table size: 480″ x 120″
Daylight under bridge: 50″
Distance between columns: 128″
Quill travel: 7″
