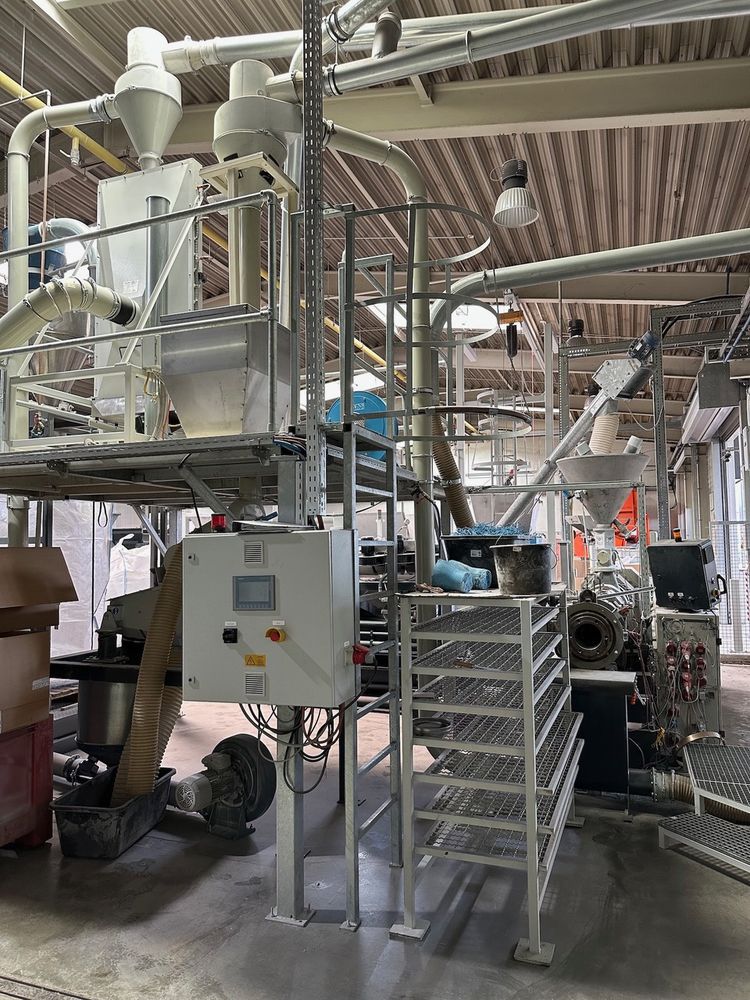

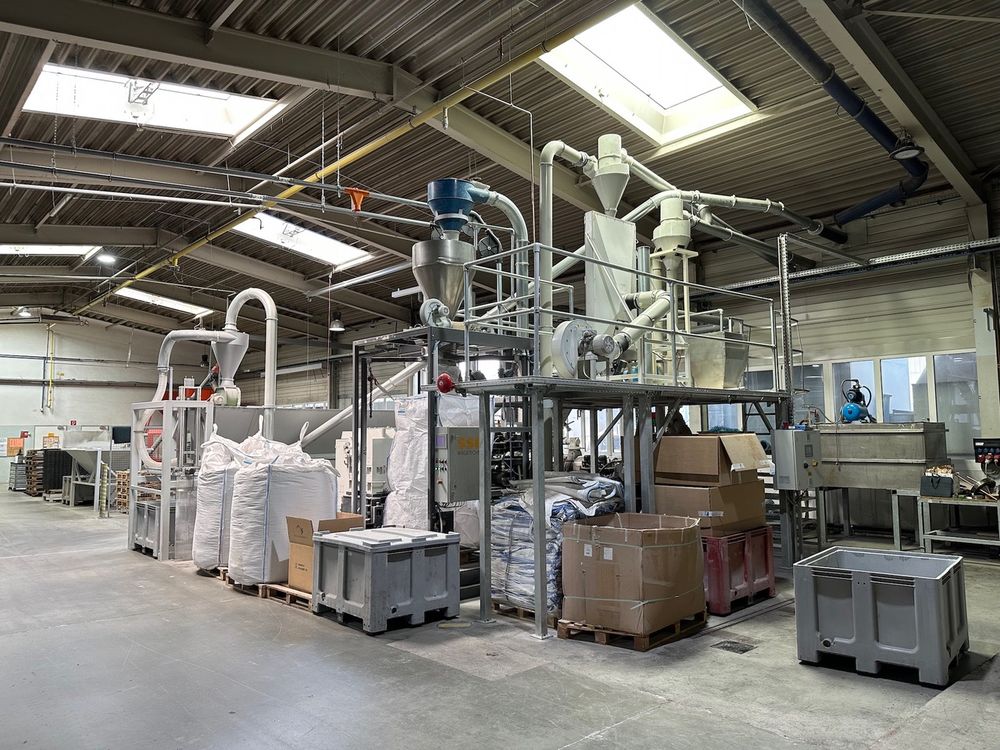

Cincinnati Complete PVC pelletizing plant

Condition: very good running condition
Output rate: up to 400 kg/h for PVC
Capacity: 300 - 400 kg/h (depending on material composition)

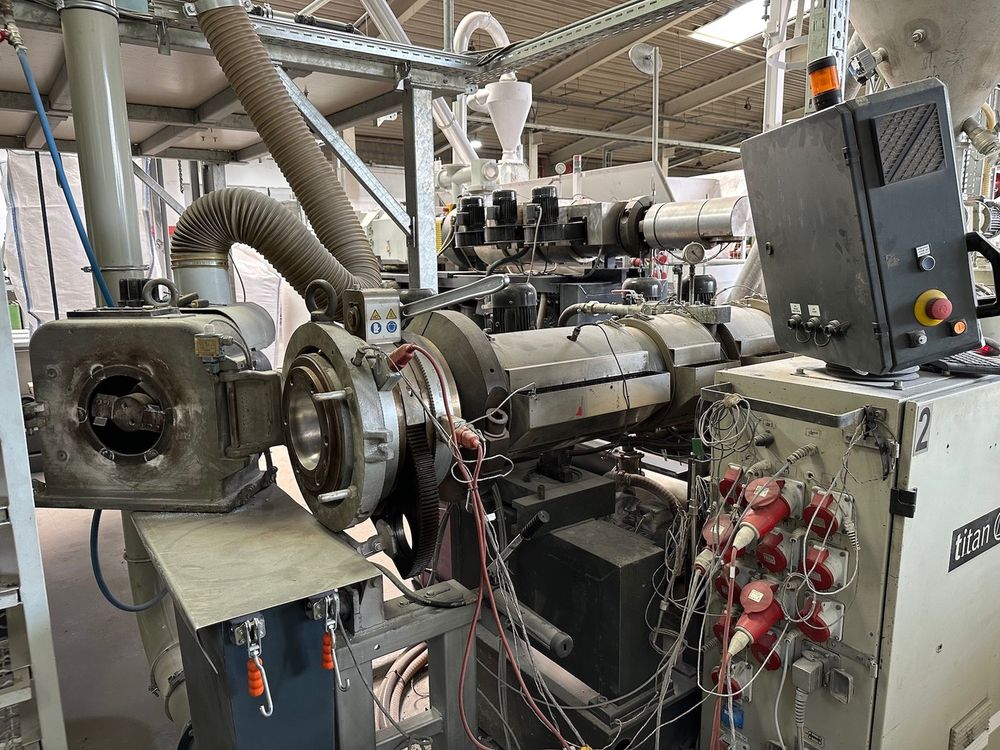

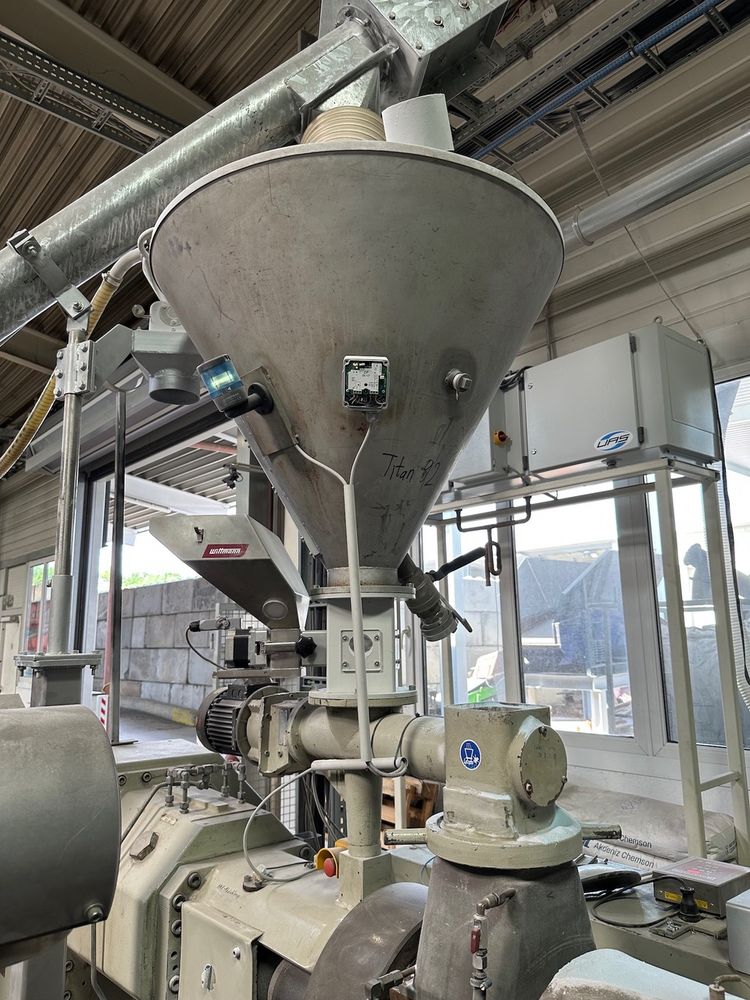

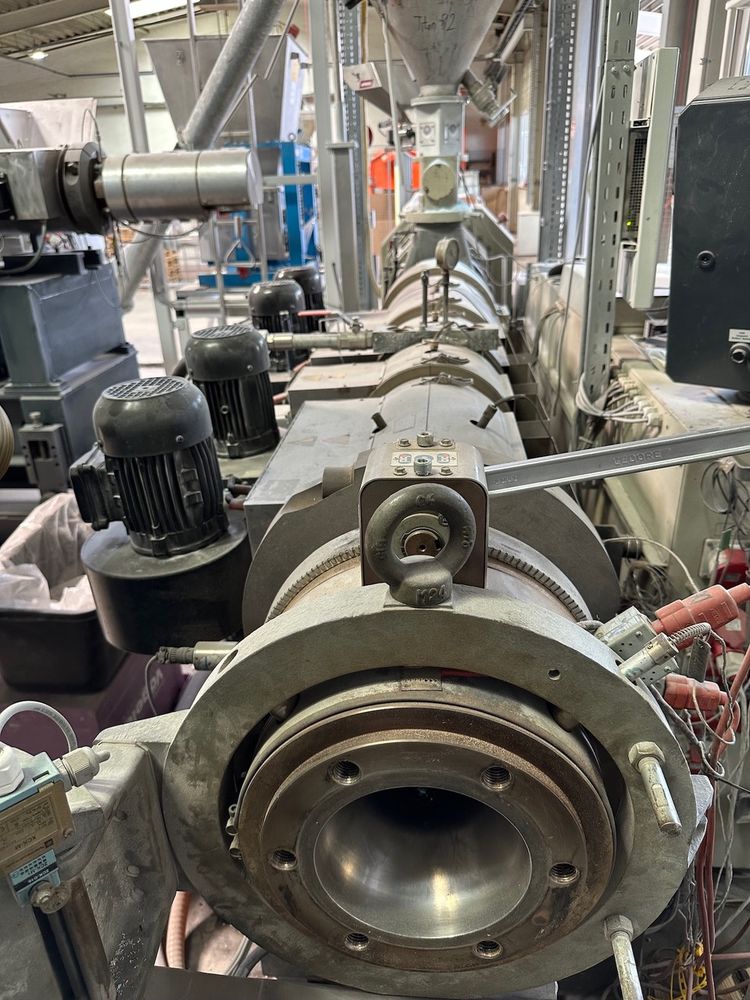

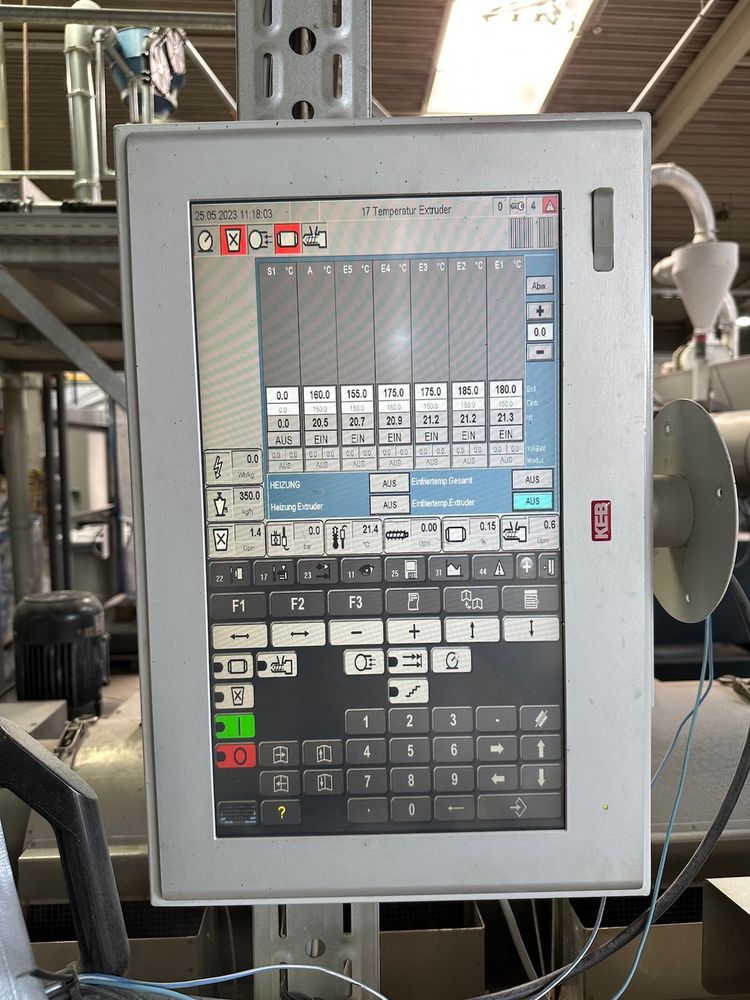

Conical Twin-Screw Extruder Cincinnati type: Titan92-APC
Year of manufacture: 1996
incl. volumetric dosing unit for masterbatch: Wittmann Dosimax

Manual Screen Changer type: BD Plast
Installed between extruder adapter and pelletizing head
Alternative:
Genuss screen changer

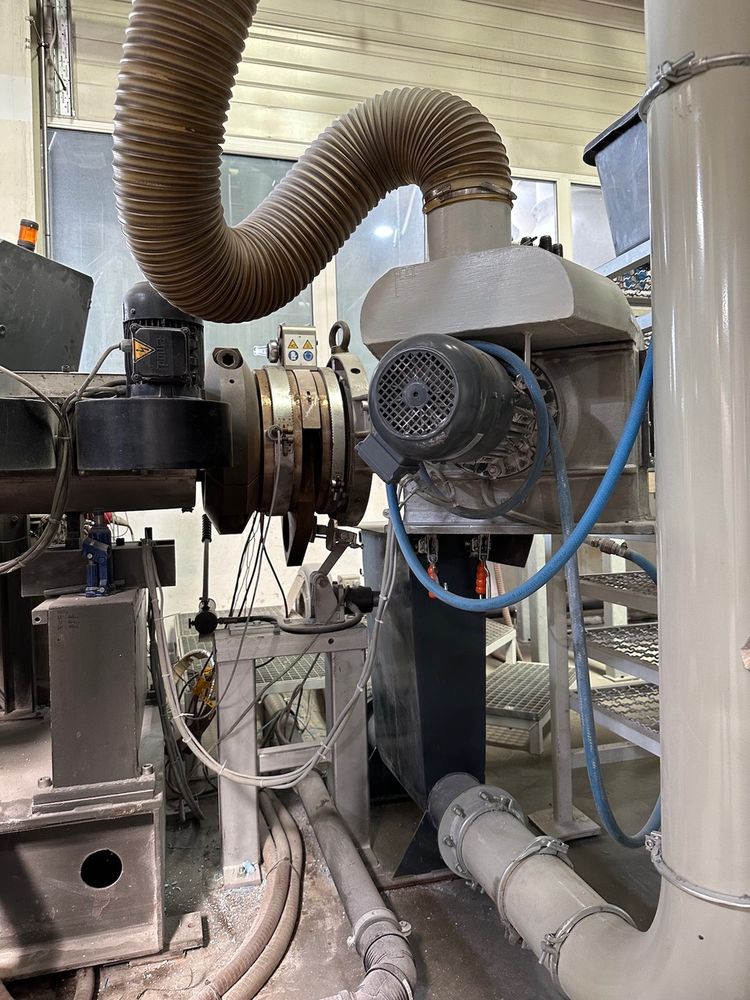

Pelletizing Head Cincinnati type: GK120
Operates using the hot-cut method incl. adapter and discharge chute

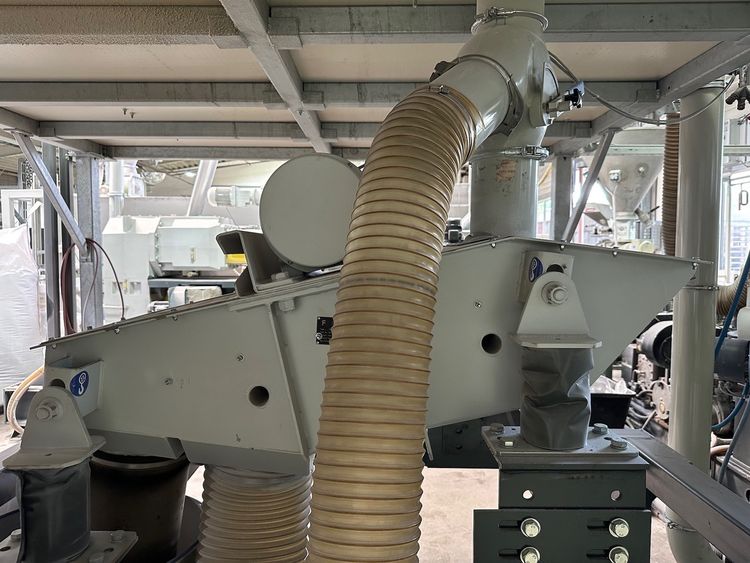

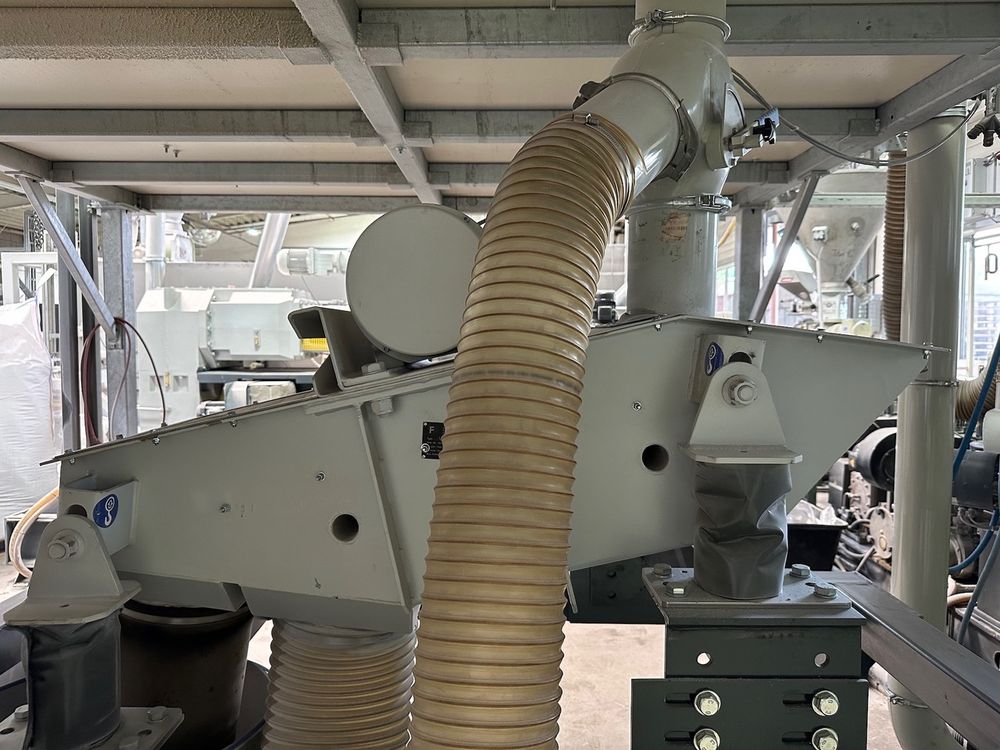

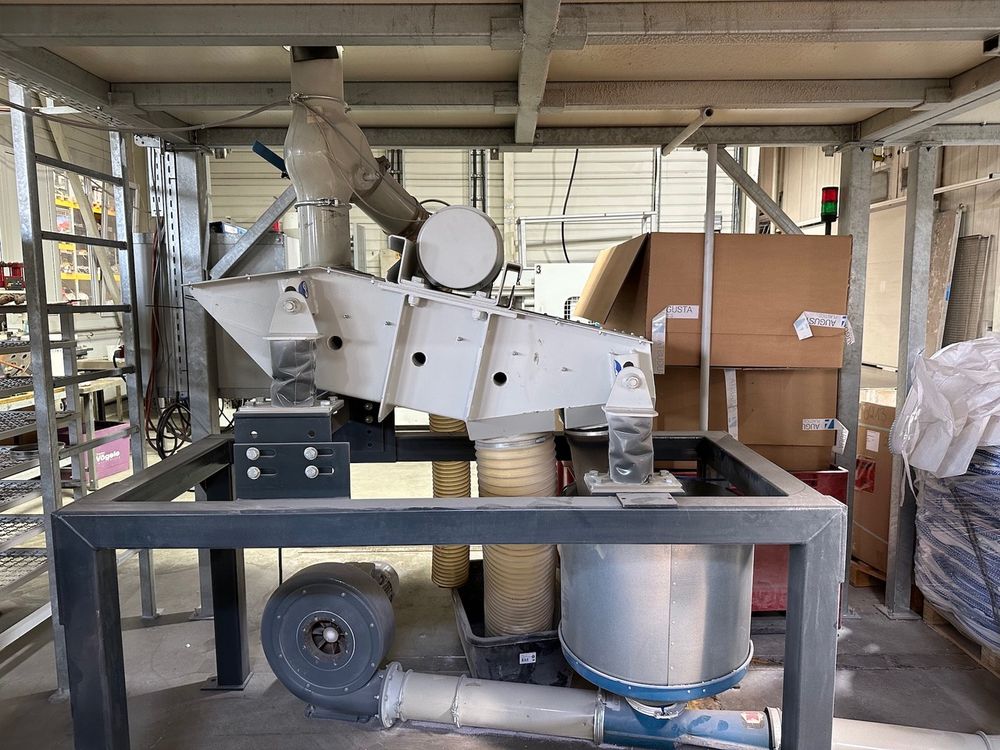

Circular Vibrating Screen IFE type: US 400 x 1000 FV – LM445T
Year of manufacture: 2018
for separating particles not bound in the granulate with
particle size < 1.8 mm

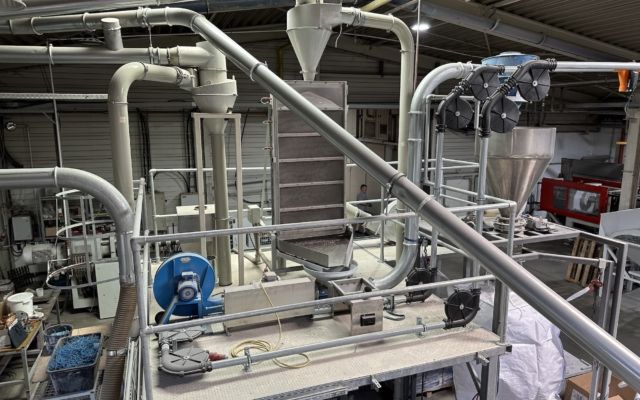

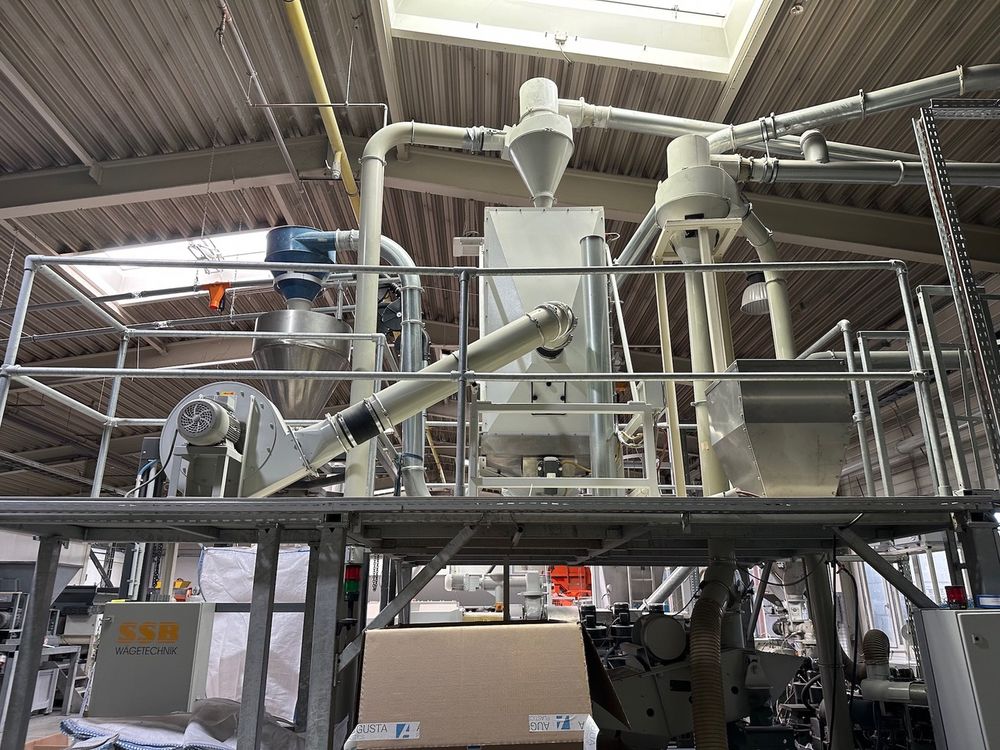

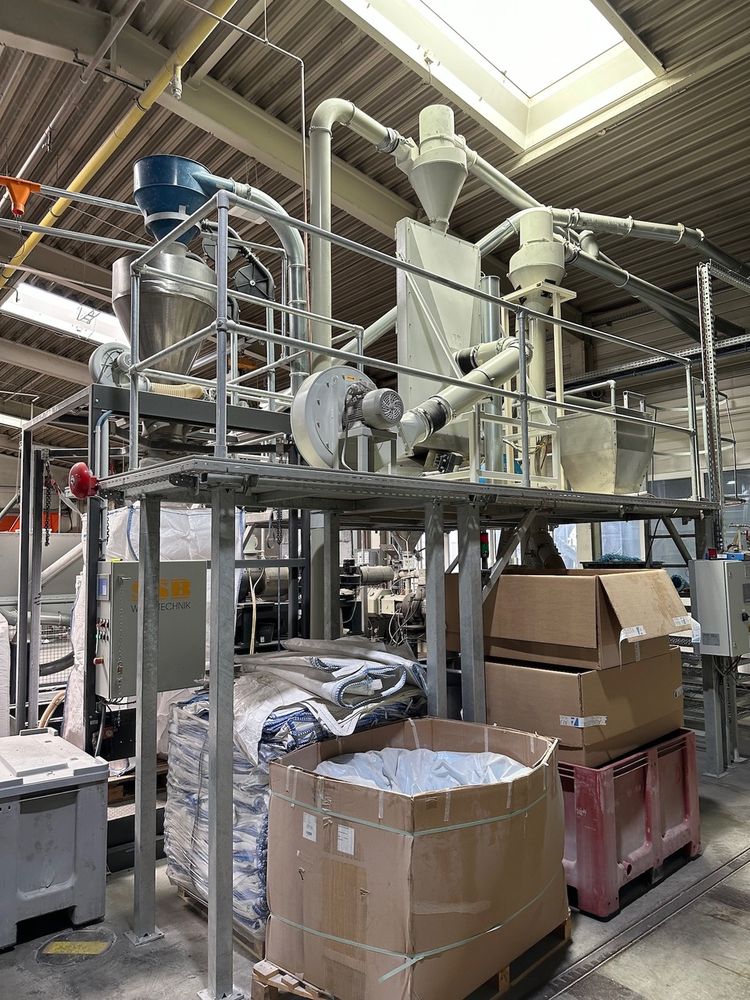

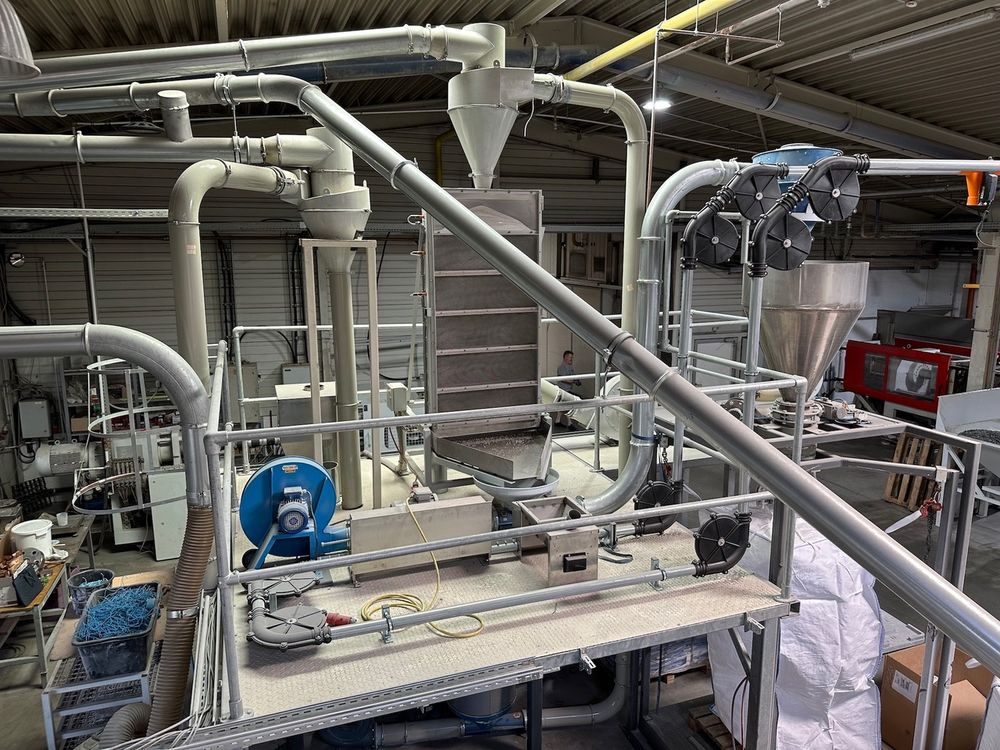

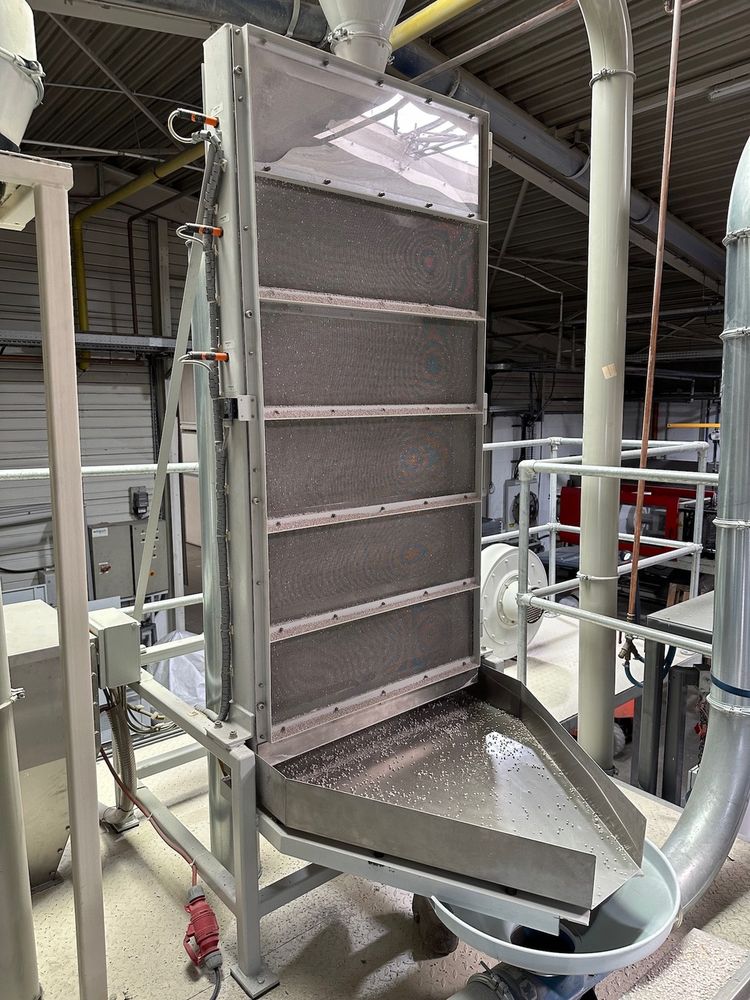

Vertical Pellet Cooler Knorr type: GK-600-PVC
Year of manufacture: 2018
Cooling volume: approx. 190 liters
Mounted on a walkable steel platform, incl. cyclone separator,
complete inlet and outlet piping and blower

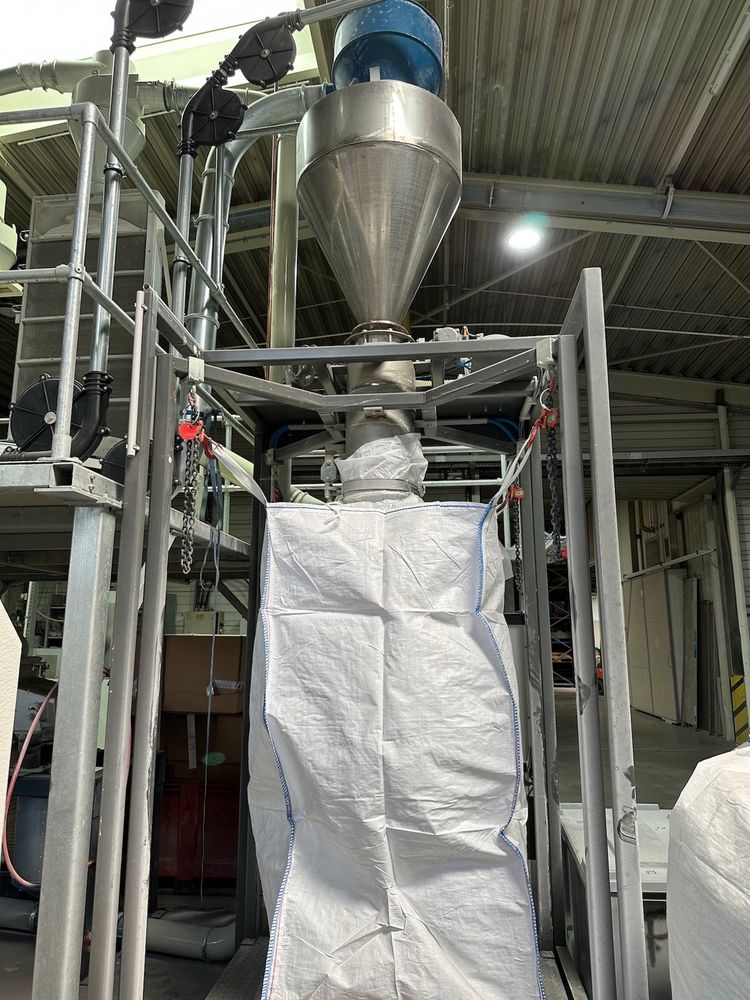

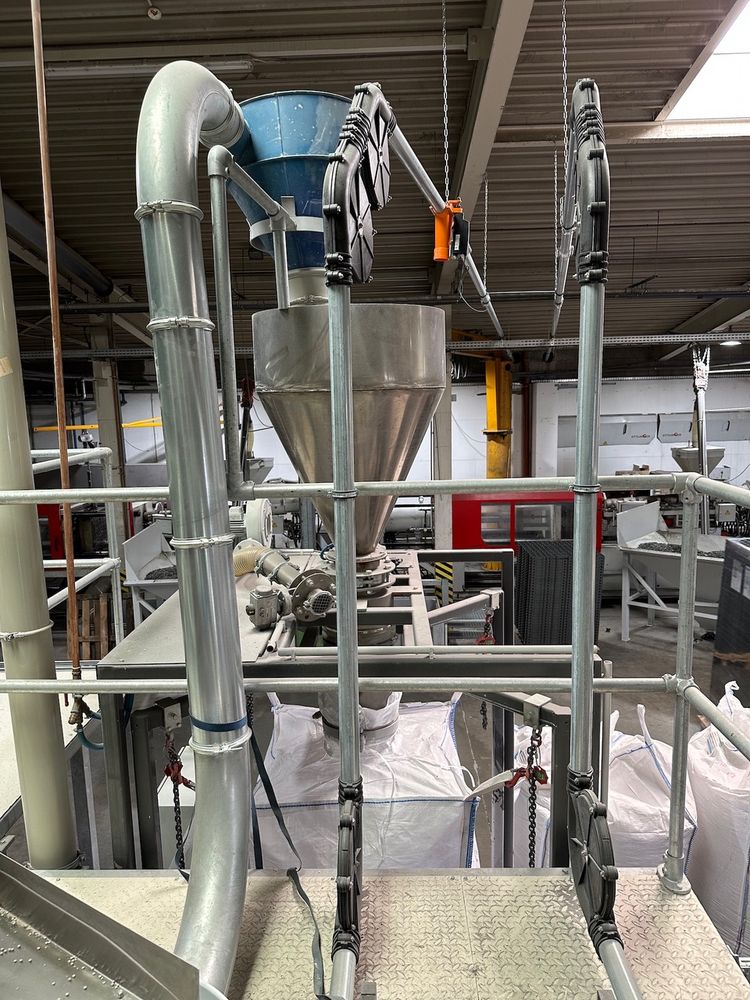

Big Bag Filling Station
incl. material transport and material weighing system: SBB weighing technology

Condition:
fully functional
Can be inspected in operation
