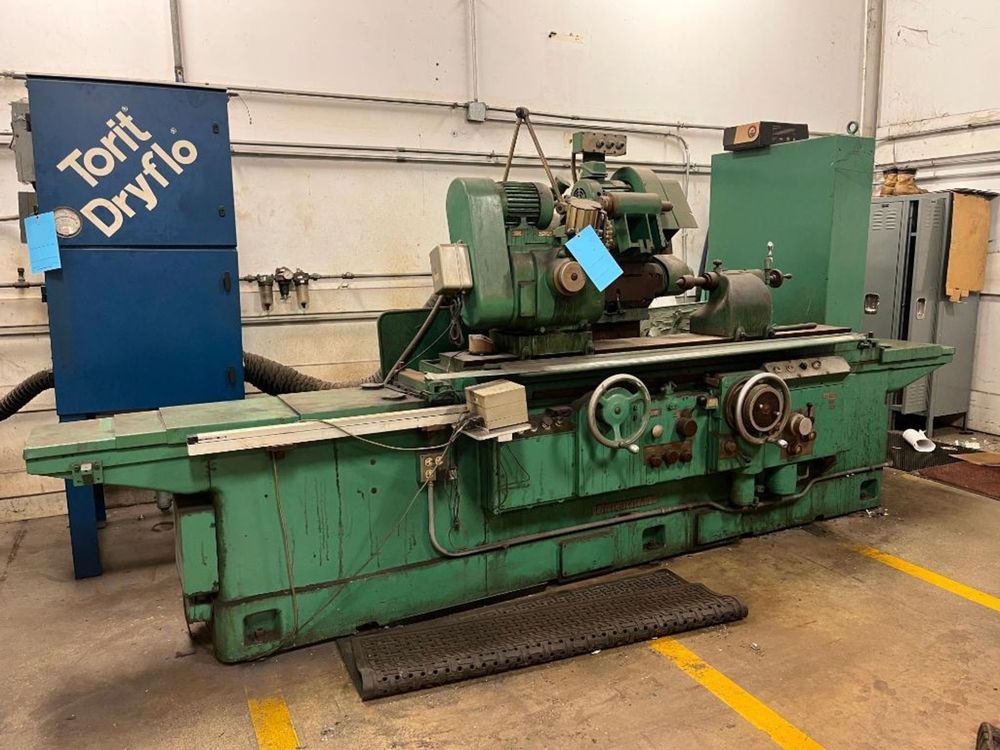

Cincinnati DE 1972

Swing over table 18-15/16"
Distance between centers 48"
Table swivel toward wheelhead 9°
Table swivel away from wheelhead 2°
Lower wheelhead swivel left & right of center 90°
Upper wheelhead swivel right & left 30°
Wheelhead motor 7.5 HP
Grinding wheel size 14" DIA
Infinitely variable table speeds 3" to 220" IPM
Hand table traverse per rev. of handwheel (rapid/slow) 15/16" / 0.2"
Automatic infeed at table reversal low 0.0002" to 0.0005"
Automatic infeed at table reversal high 0.0005" to 0.0125"
Wheelhead movement per turn of handwheel low 0.050"
Wheelhead movement per turn of handwheel high 0.250"
Minimum infeed on diameter 0.00005"
Headstock motor 1 HP
Taper hole in spindles #9 B&S
Infinitely variable workhead speeds 50 to 500 RPM
Spindle nose, American standard 5"
Headstock swivel toward wheelhead 90°
Headstock swivel away from wheelhead 30°
Floor space for operation 72" x 185"
Approx. dimensions 166" L-R, 72" F-B, 66" H
Approx. machine weight 12,800 LBS
Full hydraulic operation with power table traverse
Pick feed (auto infeed)
Auto dual rate plunge infeed
Power rapid advance & retraction of wheel
Sparkout timer
Swing down I.D. attachment with spindle
Mitutoyo 2-axis digital readout display
Infinitely variable workhead spindle speeds
Workhead spindle live & dead
Separate electrical cabinet
Self-contained coolant system
5 HP / 3/60/230-460 volt spindle motor
Presently wired for 3/60/460 volts, 23 FLA
