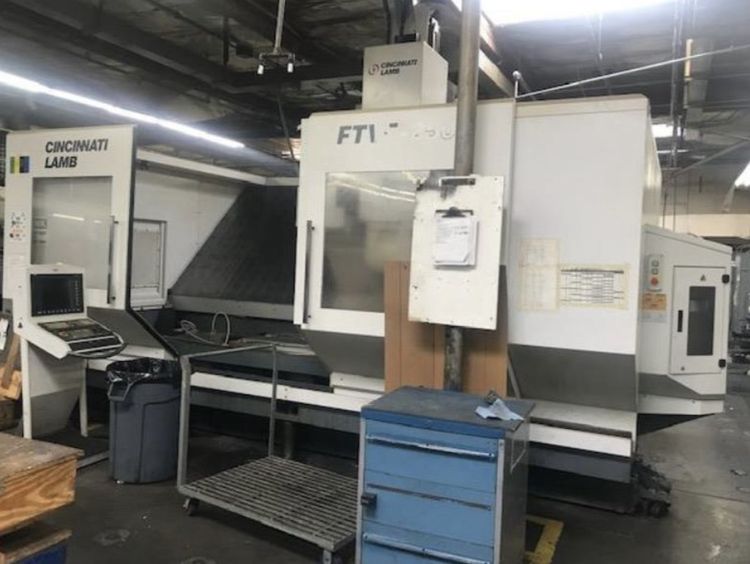

Cincinnati FTV5-2500 5 Axis

X Axis Travel 100”
Y Axis Travel 31”
Z Axis Travel 20”
A Axis ±45°
C Axis 360° Continuous

Spindle Taper HSK-63
Spindle Speed 18,000 RPM
Control Siemens 840D
Table Size Approx. 47” x 30”
Table Load Capacity ~2,000 lbs
Tool Changer Capacity 60 stations

Max Tool Diameter 3.15”
Max Tool Length 11.8”
Max Tool Weight 15.4 lbs

Tool-to-Tool Change Time ~3 seconds
Rapid Traverse Rate 1,200 IPM
Cutting Feedrate Up to 630 IPM

Machine Weight Approx. 30,000 lbs
Machine Dimensions Approx. 240” x 120”
Electrical 230/460V, 3 Phase, 60 Hz
Through Spindle Coolant
