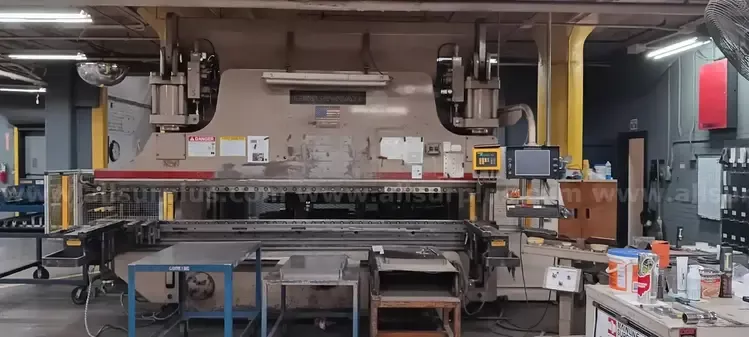

Cincinnati INC 230AF-10 Tonnage 230 T

2012 retrofit
Overall length 168"
Between housings 126"
Stroke 10"
Number of axes 6
Control CNC (Gen 4 Autoform CNC Control)
Weight 39000 lbs
Tonnage capacity medium/low speed 230 T
Tonnage capacity full forming speed 190 T
Overall length of bed and ram 14'
Distance between housings 10'6.5"
Bending capacity 12'9" x 1/4"
Bending capacity 8'3" x 3/8"
Open height 17"
Closed height 7"
Throat depth 8"
Ram speed high approach 230 IPM
Ram speed variable forming 1–45 IPM
Ram speed variable return 1–250 IPM
Hydraulic motor horsepower 25 HP
Weight approximately 41000 lbs

Features / Equipment
Gen 4 Autoform CNC Control
6-axis CNC back gauge
Front gauge
Automatic crowning attachment
Power clamp hydraulic die holding
2' horn extension on left side
No pit required
