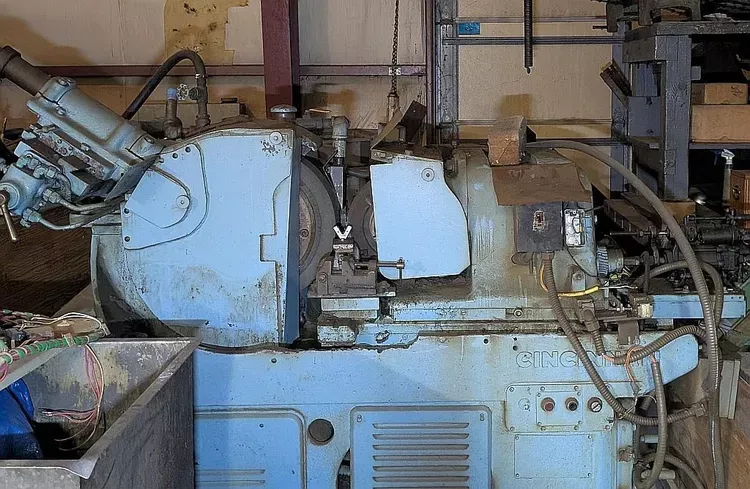

Cincinnati Milacron 220-8

CINCINNATI MILACRON 220-8

Work Diameter Capacity:
Standard work rest: 0″ to 3″
Maximum with low work rest: up to 4.75″

Grinding Wheel Size:
Diameter: 17" to 20"
Width: 1" to 8"
Hole Diameter: 12"
Motor Power: 20 HP
Surface Speed: Up to 10,500 SFPM

Regulating Wheel Size:
Diameter: 9.75" to 12"
Width: 1" to 8"
Hole Diameter: 5"
Motor Power: 1.5 HP
Speed: Variable, 11 to 300 RPM

Hydraulic System:
Motor Power: 2 HP
Electrical Configuration:
Voltage: 220V, 3-phase, 60Hz

Dimensions:
Floor Space: Approximately 95" L x 127.5" W
Overall Dimensions: 132" L x 72" W x 60" H
Weight: Approximately 13,000 lbs
Capacity 3"
Grinding Wheel Dia. 24"
GW Power 20 hp
GW RPM 1,034 RPM
Regulating Wheel Dia 13"
RW Power 1.5 hp
RW RPM 15 RPM
Dimensions 132" L x 72" W x 60" H
Weight 13,000 lbs

Work Diameter Capacity:
Standard work rest: 0″ to 3″
Maximum with low work rest: up to 4.75″

Grinding Wheel Size:
Diameter: 17" to 20"
Width: 1" to 8"
Hole Diameter: 12"
Motor Power: 20 HP
Surface Speed: Up to 10,500 SFPM

Regulating Wheel Size:
Diameter: 9.75" to 12"
Width: 1" to 8"
Hole Diameter: 5"
Motor Power: 1.5 HP
Speed: Variable, 11 to 300 RPM

Hydraulic System:
Motor Power: 2 HP
Electrical Configuration:
Voltage: 220V, 3-phase, 60Hz

Dimensions:
Floor Space: Approximately 95" L x 127.5" W
Overall Dimensions: 132" L x 72" W x 60" H
Weight: Approximately 13,000 lbs
