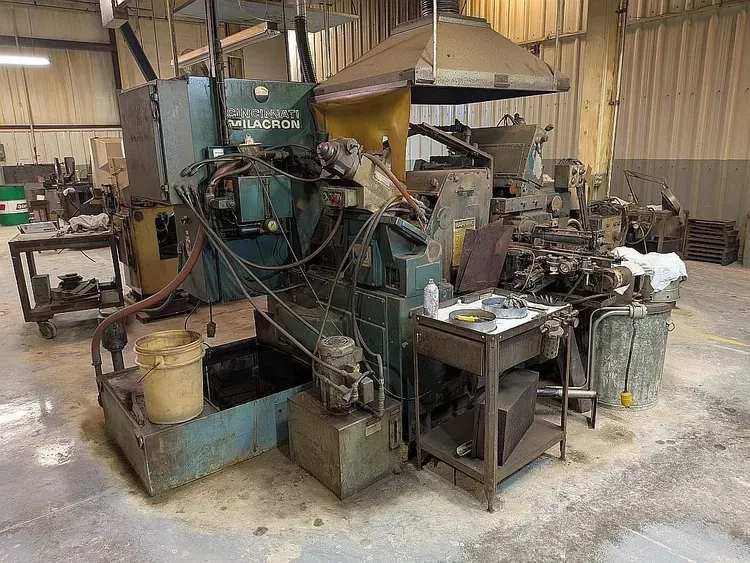

Cincinnati Milacron 220-8

CINCINNATI MILACRON 220-8
Year: 1975

Grinding Capacities:
Nominal Work Diameter Capacity: 0″ to 3″
Maximum Work Diameter Capacity (with new wheel): 4.75″

Grinding Wheel:
Diameter Range: 17″ to 24″
Width Range: 1″ to 8″
Hole Diameter: 12″
Motor Power: 20 HP
Speed: Approximately 1,034 RPM

Regulating Wheel:
Diameter Range: 9.75″ to 13″
Width Range: 1″ to 8″
Hole Diameter: 5″
Motor Power: 1.5 HP
Speed Range: 15 to 300 RPM (variable)

Motors and Power:
Grinding Wheel Motor: 20 HP
Regulating Wheel Motor: 1.5 HP
Hydraulic System Motor: 2 HP
Electrical Requirements: 230V / 3 Phase / 60 Hz

Dimensions and Weight:
Floor Space Required: Approximately 95″ x 127.5″
Overall Dimensions: Approximately 132″ L x 60″ W x 80″ H
Weight: Approximately 13,500 lbs

Equipped with:
Crush Truing Unit
Capacity 3"
Grinding Wheel Dia. 24"
GW Power 20 hp
GW RPM 1,034 RPM
Regulating Wheel Dia 13"
RW Power 1.5 hp
RW RPM 15 RPM
Dimensions 132″ L x 60″ W x 80″ H
Weight 13500

Grinding Capacities:
Nominal Work Diameter Capacity: 0″ to 3″
Maximum Work Diameter Capacity (with new wheel): 4.75″

Grinding Wheel:
Diameter Range: 17″ to 24″
Width Range: 1″ to 8″
Hole Diameter: 12″
Motor Power: 20 HP
Speed: Approximately 1,034 RPM

Regulating Wheel:
Diameter Range: 9.75″ to 13″
Width Range: 1″ to 8″
Hole Diameter: 5″
Motor Power: 1.5 HP
Speed Range: 15 to 300 RPM (variable)

Motors and Power:
Grinding Wheel Motor: 20 HP
Regulating Wheel Motor: 1.5 HP
Hydraulic System Motor: 2 HP
Electrical Requirements: 230V / 3 Phase / 60 Hz

Dimensions and Weight:
Floor Space Required: Approximately 95″ x 127.5″
Overall Dimensions: Approximately 132″ L x 60″ W x 80″ H
Weight: Approximately 13,500 lbs

Equipped with:
Crush Truing Unit
