Cincinnati Milacron 220-8
AMERICA North (USA-Canada-Mexico)

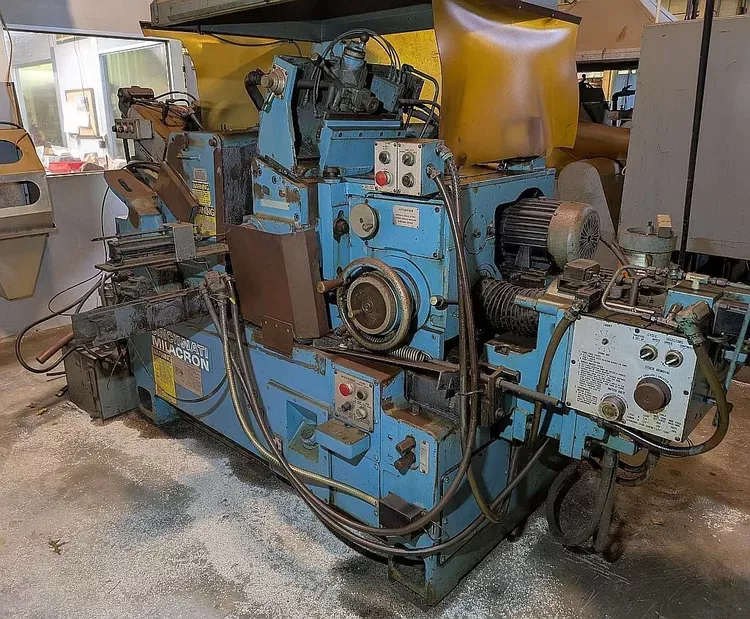

CINCINNATI MILACRON 220-8
Year: 1977
Work Diameter Capacity:
Standard work rest: 0″ to 3″
Maximum with low work rest: up to 4.75″
Grinding Wheel:
Diameter: 15" to 20"
Width: 1" to 8"
Hole Diameter: 12"
Motor Power: 20 HP
Regulating Wheel:
Diameter: 9.75" to 13"
Width: 1" to 8"
Hole Diameter: 5"
Speeds: Variable, 15 to 300 RPM
Motor Power: 1.5 HP
Hydraulic System:
Motor Power: 2 HP
Electrical System:
Voltage: 220-440V
Phase: 3-phase
Frequency: 60 Hz
Dimensions:
Floor Space: 95" x 127.5"
Overall: 132" x 72" x 60"
Weight: 13,500
Equipped with:
Crush Truing Unit
Diamond Crush Dresser
Capacity 3"
Grinding Wheel Dia. 24"
GW Power 20 hp
GW RPM 1,034 RPM
Regulating Wheel Dia 13"
RW Power 1.5 hp
RW RPM 15 RPM
Dimensions 132" x 72" x 60"
Weight 13500
Work Diameter Capacity:
Standard work rest: 0″ to 3″
Maximum with low work rest: up to 4.75″
Grinding Wheel:
Diameter: 15" to 20"
Width: 1" to 8"
Hole Diameter: 12"
Motor Power: 20 HP
Regulating Wheel:
Diameter: 9.75" to 13"
Width: 1" to 8"
Hole Diameter: 5"
Speeds: Variable, 15 to 300 RPM
Motor Power: 1.5 HP
Hydraulic System:
Motor Power: 2 HP
Electrical System:
Voltage: 220-440V
Phase: 3-phase
Frequency: 60 Hz
Dimensions:
Floor Space: 95" x 127.5"
Overall: 132" x 72" x 60"
Weight: 13,500
Equipped with:
Crush Truing Unit
Diamond Crush Dresser
