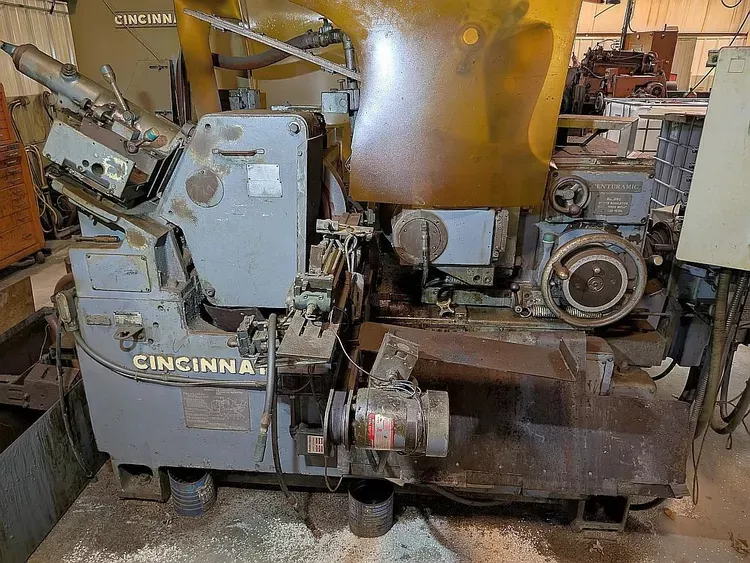

Cincinnati Milacron 220-8

CINCINNATI MILACRON 220-8
Year: 1978

Work Capacity:
Standard Work Rest: 0″ – 3″ diameter
Maximum Work Diameter: 4″

Grinding Wheel:
Size: 8″ wide × 24″ diameter × 12″ bore
Speed: 1,800 RPM
Motor Power: 15 HP

Regulating Wheel:
Size: 8″ wide × 23″ diameter × 5″ bore
Speed: Infinitely variable from 15 to 300 RPM
Motor Power: 1 HP

Hydraulic System:
Motor Power: 0.5 HP

Electrical Requirements:
Voltage: 460V
Phase: 3-phase
Frequency: 60 Hz

Dimensions & Weight
Floor Space: Approximately 84″ × 56″
Overall: Length: 84" x 56" x 65" to 70" inches (depending on optional attachments like mist collectors or electrical enclosures)
Weight: Approximately 9,500 lbs
Capacity 3"
Grinding Wheel Dia. 24"
GW Power 20 hp
GW RPM 1,034 RPM
Regulating Wheel Dia 13"
RW Power 1.5 hp
RW RPM 15 RPM
Dimensions 84" x 56" x 65" to 70"
Weight 9500

Work Capacity:
Standard Work Rest: 0″ – 3″ diameter
Maximum Work Diameter: 4″

Grinding Wheel:
Size: 8″ wide × 24″ diameter × 12″ bore
Speed: 1,800 RPM
Motor Power: 15 HP

Regulating Wheel:
Size: 8″ wide × 23″ diameter × 5″ bore
Speed: Infinitely variable from 15 to 300 RPM
Motor Power: 1 HP

Hydraulic System:
Motor Power: 0.5 HP

Electrical Requirements:
Voltage: 460V
Phase: 3-phase
Frequency: 60 Hz

Dimensions & Weight
Floor Space: Approximately 84″ × 56″
Overall: Length: 84" x 56" x 65" to 70" inches (depending on optional attachments like mist collectors or electrical enclosures)
Weight: Approximately 9,500 lbs
