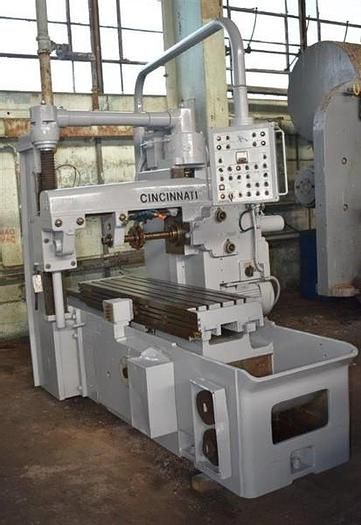

Cincinnati Milacron 315-183 7.5" 1200 RPM

X-Axis Travel: 36"
Y-Axis (Spindle-Head Vertical Travel): 20"
Z-Axis (Quill Cross Adjustment): 8"

Table Dimensions (W x L): 18" x 68"
Table Working Surface (W x L): 18" x 60"

Spindle-Center to Overarm Underside: 6.625"
Spindle-Center to Table (Min): 4.25"
Spindle-Center to Table (Max): 18.25"
Quill Diameter: 7.5"

Spindle Taper: #50 NSTD
Spindle Speeds (16): 50 – 1200 RPM
Table Feed Range: 1 – 150 IPM
Power Rapid Table Traverse: 300 IPM
Spindle Motor Power: 15 HP
Hydraulic Motor Power: 7.5 HP
Overall Dimensions (L x D): 10'4" x 6'3"
Overall Height: 5'11"
Weight: 16,900 lbs

6" Extended Vertical Travel
Rise & Fall Head Travel
Outboard Support with Elevating Mechanism
Pendant Control with Load Meter
(2) Arbor Supports
Flame Hardened Bed Ways
Power Rapid Traverse
Built-In Coolant System
