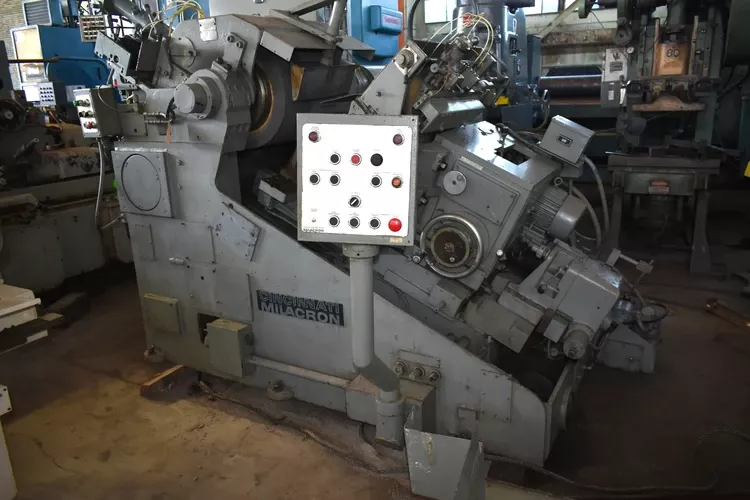

Cincinnati Milacron 440-20 Twin Grip Centerless Grinder

Diameter capacity minimum 1"
Diameter capacity maximum 10"
Grinding wheel diameter minimum 17"
Grinding wheel diameter maximum 24"
Grinding wheel width maximum 20"
Grinding wheel hole diameter 12"
Regulating wheel diameter minimum 10-1/4"
Regulating wheel diameter maximum 14"
Regulating wheel width maximum 20"
Regulating wheel hole diameter 6"
Regulating wheel speeds 10–300 RPM
Grinding wheel motor 40 HP
Regulating wheel motor 2 HP
Overall dimensions L9'11"×D6'5"
Overall height 7'3"
Weight approximately 24,000 lbs
20" Thrufeed workrest
Automatic power roller loader 6"–12" diameter capacity
Hydraulic profile grinding wheel truing with automatic diamond advance
Hydraulic profile regulating wheel truing
Cartridge-type grinding spindle with 5-shoe filmatic bearings
Gibbed lower slide and gibbed upper slide
Front handwheel slide adjustment
Push button hydraulic one-way slide compensator
