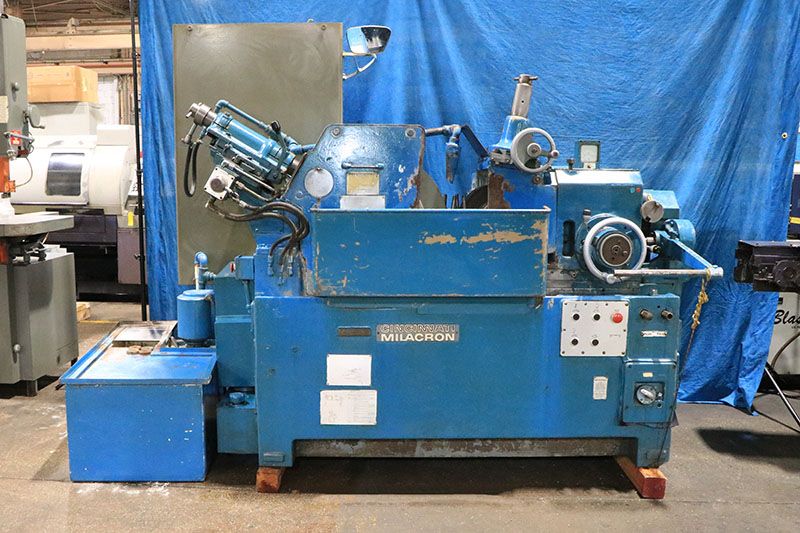

Cincinnati Milacron CINCO 15

CINCINNATI-MILACRON CINCO 15
1979

Work diameter capacity 0" to 3"
Maximum work diameter 4"
Grinding wheel width capacity 8"
Grinding wheel diameter capacity 17" to 24"
Grinding wheel hole diameter 12"
Regulating wheel width capacity 8"
Regulating wheel diameter standard 12"
Regulating wheel diameter maximum 15"
Regulating wheel diameter minimum 9.5"
Regulating wheel hole diameter 5"
Grinding wheel drive motor 15 HP
Regulating wheel drive motor 1.5 HP
Regulating wheel speed infinitely variable 15 to 300 RPM
Infeed adjustment handwheel graduation 0.001"
Machine weight approximately 8100 lbs
Machine dimensions 90" L x 50" W x 64" H
Filmatic grinding wheel spindle bearings
24" grinding wheel included
Work rest included
Hydraulic grinding wheel profile truing dresser
Manual regulating wheel truing dresser
Taper adjustment
Infinitely variable regulating wheel speeds
Coolant system
Compact electrical cabinet
Tooling interchangeable with OM and EA models
Machine wired for 3/60/230 volts
Excellent condition and appearance
