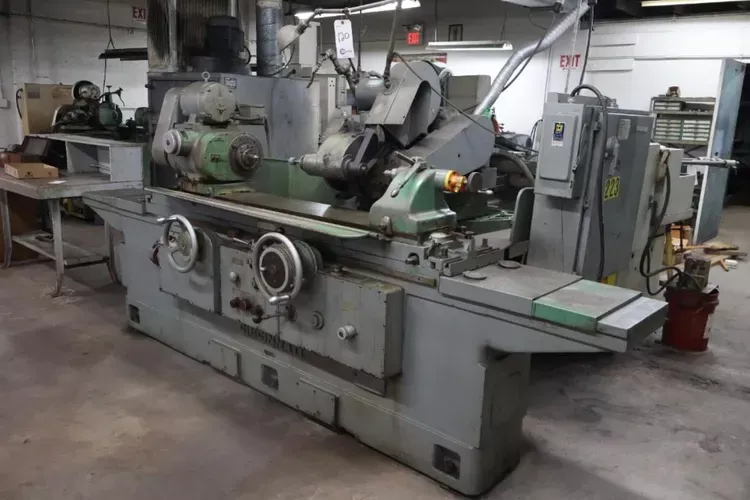

Cincinnati Milacron DE

Swing over table 14.94 in
Distance between centers 36 in
Maximum grinding diameter 14 in
Minimum grinding diameter 0 in
Grinding wheel diameter 14 in
Grinding wheel width 1.5 in
Grinding wheel hole diameter 5 in
Grinding wheel speed 500 rpm
Workhead spindle speed range 50–500 rpm
Table longitudinal feed range 3–240 ipm
Wheelhead spindle motor power 3 hp
Workhead motor power 1 hp
Swing-down internal grinding attachment
Hydraulic pickfeed attachment
Variable speed workhead
Built-in coolant system
Table swivel taper toward wheelhead 4.5 TPF
Table swivel taper away from wheelhead 1.25 TPF
Headstock swivel toward wheelhead 90 degrees
Headstock swivel away from wheelhead 30 degrees
Lower wheelhead swivel range 90 degrees
Upper wheelhead swivel range 30 degrees
Workhead and tailstock center taper No. 9 B&S
Machine length 12 ft 9 in
Machine width 5 ft 6 in
