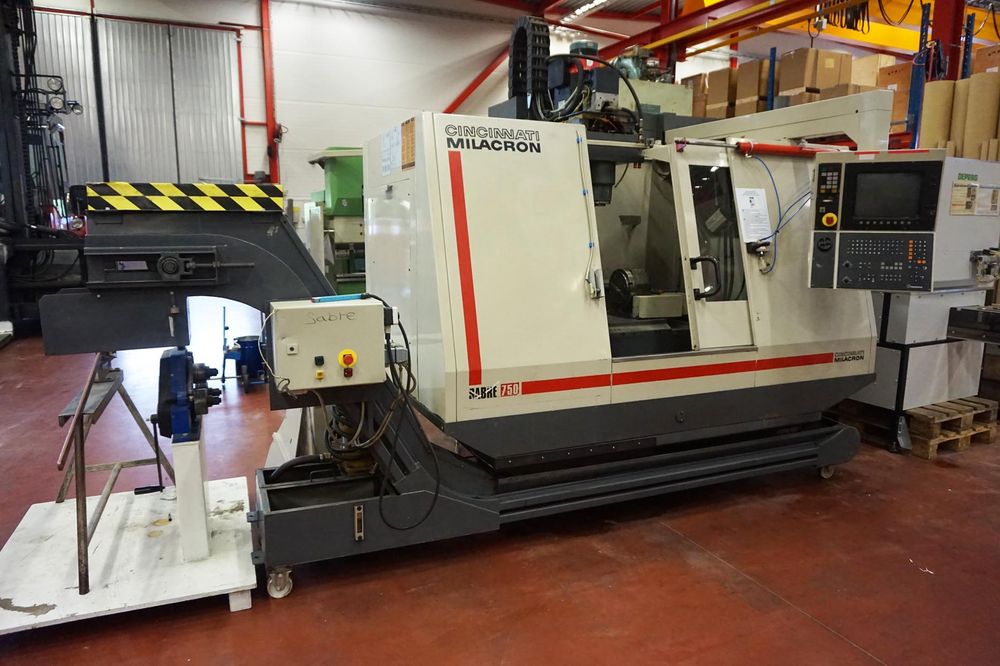

Cincinnati Sabre 750 with 4:th axis 4 Axis

Cincinnati Sabre 750 with 4:th axis
Year 1995


4:th axis Cincinnati Ø250 mm chip conveyor 2 pcs integrated
drill chuck 1 pcs 3D-taster 9 pcs collet chucks (OZ25) with 17 pcs
collets 3-25 mm 3 pcs collet chuck (OZ32) with 17 pcs collets
6-32 mm 7 pcs end mill holders Ø7-16-20-20-25-32-40 mm 3 pcs
morse taper holders SK40-MK1/MK2/MK3 4 pcs variolock
holders SK40 2 pcs face mill arbors face mill cutter 90° Ø50 mm

face mill cutter Ø80 mm parallels set clamping tools set various
clamping tools manuals etc.

Specification
Control system: Heidenhain TNC415B
Working travel: X762, Y510, Z560 mm
Distance spindle - table: 127-687 mm
Table size: 865x510 mm
Max load at table: 455 kg
Spindle speed: 60-8000 rpm
Spindle motor: 9 kW (12 Hp)
Spindle taper: SK40
Feedrates X/Y: 3-20000 mm/min
Feedrates Z: 3-18000 mm/min
Rapid feed X/Y: 20 m/min
Rapid feed Z: 18 m/min
Tool storage capacity: 21 pcs
