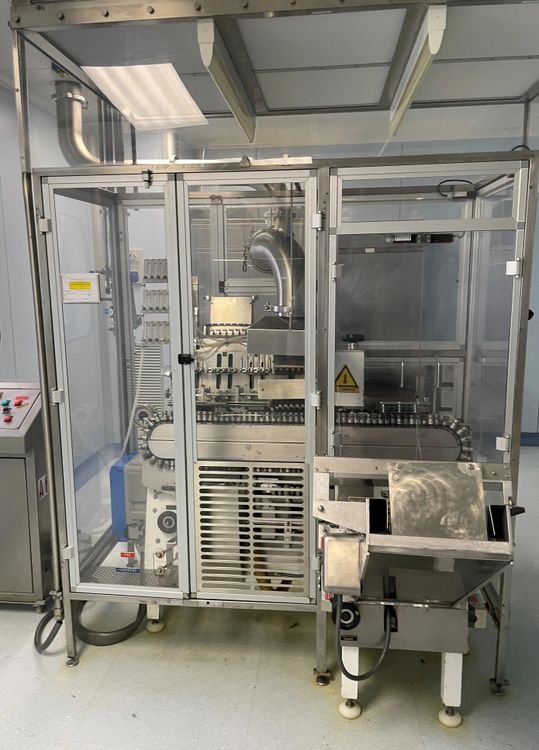

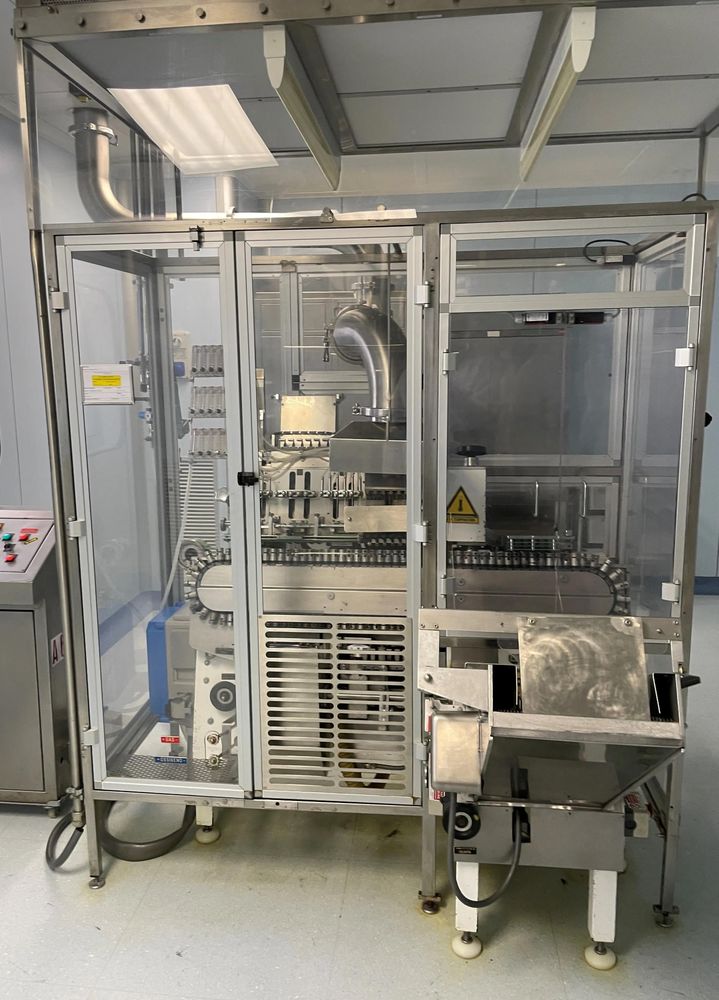

Cioni A6 FC, Liquid Filling Machine

Automatic filling machine for closed or open ampoules.
With automatic loading and unloading.
The equipment comes with its laminar flow.

MACHINE CHARACTERISTICS
Formats included: 1-2 ml
All operations are carried out with a single operator
Also works for open blisters

PRODUCTION CHARACTERISTICS
Output: 12,000 units/h
Maximum diameter of the vial: 19 +/- 19.5 mm
Dosage: 1 +/- 10 ml
Ampoules load: 6 by 6

Feeding: width max. 310 +/- 315mm; width min. 160mm; length max. 500mm
Discharge: width max. 365mm; width min. of the individual basket 160mm; length max. 500mm

DIMENSIONS
Size: W 2300 x L 1940 x H 1600 mm
Net weight: 460 kg
Gross weight: 780 kg

ENERGY CONSUMPTION
Pressures
G.P.L.: min. Kg /cm² 0.6 - max. Kg /cm² 2 +/- 3
Oxygen: min. kg /cm² 1 - max. kg /cm² 3
Nitrogen: min. kg /cm² 0.4 - max. kg /cm² 1.2 +/- 1.3

Electricity consumption: 220-380V 50Hz
Absorption: A. 220V A. 6.5; A. 380V A. 4.2
