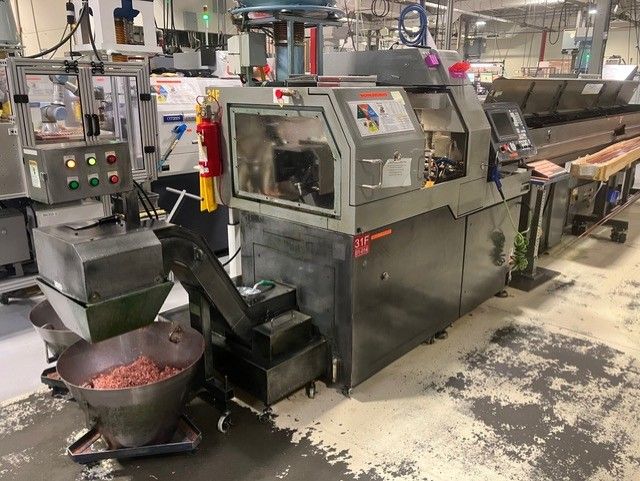

Citizen Cincom CNC Control 10,000 RPM L-20 Type VIII 2 Axis

Control: Cincom CNC Control
Bar Loader: Citizen CAV20-IS Magazine Bar Loader
Chip Conveyor: Yes
Coolant: CoolBlaster High Pressure Coolant
Mist Collector: 3Nine Clara Mist Collector
Max Machining Diameter (Main Spindle): 0.79"
Max Machining Length per One Chuck: 7.87"
Max Drilling Diameter: 0.394"
Main Spindle Speed: 200 - 10,000 RPM
Main Spindle Motor: 2.2/3.7 KW
Min Spindle Input Increment: 0.01 Full C-axis
Tooling (Main Spindle): 1/2" (T01 5/8")
Back-Work Max Chucking Diameter: 0.79"
Pick-Off Spindle Speed: 200 - 8,000 RPM
Pick-Off Spindle Motor: 0.75/1.5 KW
Min Spindle Increment (Back-Work): 0.01 Deg. Full C-axis
Rotary Tool Spindle Speed: 200 - 5,000 RPM
Rotary Tool Motor: 1.0 KW
Number of Tools Mounted: 18-21
Turning / Front ID / Back ID / Live Tools: 5 / 3 / 3 / 5
Power Consumption: 6 KVA
Machine Dimensions: 83.5" x 48" x 81"
Approx. Weight: 5,000 lbs
