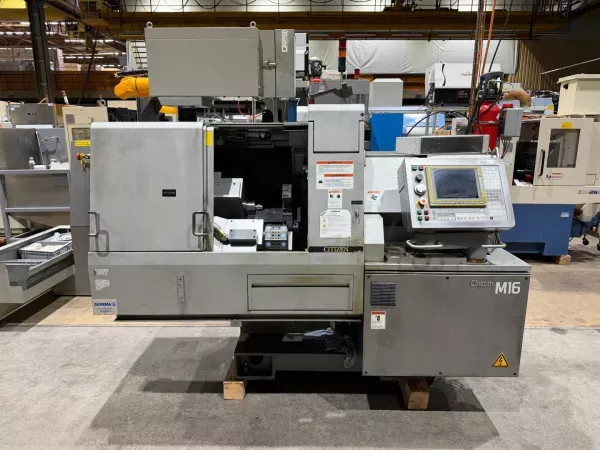

Citizen CNC CONTROL 10,000 rpm CINCOM M16 9 Axis

X1 travel 60.5 mm
Y1 travel 208 mm
Z1 travel 205 mm
X2 travel 107.5 mm
Z2 travel 133 mm
X3 travel 195 mm
Z3 travel 280 mm
C axis main spindle 0.001°
C axis smallest input increment 0.001 mm

Max. machining diameter ø16 mm
Max. machining length 200 mm
Max. front drilling diameter ø6 mm
Max. front tapping diameter M6
Main spindle bore diameter ø16 mm
Max. sub-spindle clamping diameter ø16 mm
Max. backworking length 125 mm
Max. overhang sub-spindle parts 25 mm
Max. backworking drill diameter ø5 mm
Max. backworking tapping diameter M5
Main spindle speed 200–10,000 rpm
Sub-spindle speed 200–10,000 rpm

Toolholder group max. drill diameter ø5 mm
Toolholder group max. tapping diameter M4
Toolholder spindle speed 200–8,000 rpm

Turret max. drill diameter ø5 mm
Turret max. tapping diameter M5
Turret spindle speed 200–6,500 rpm
Motor power main spindle 2.2 kW
Motor power sub-spindle 0.75 kW
Tool drive spindles 0.75 kW

Feedrate 20 m/min
Tool capacity up to 21+α
LNS Express-220 bar feeder (2011)
Various toolholders
