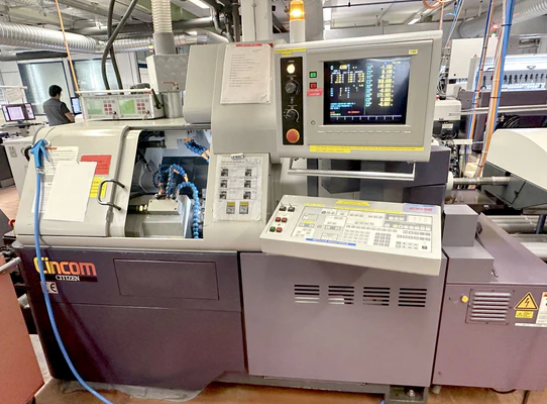

Citizen CNC CONTROL 10000 t/min CINCOM M 20 2 Axis

Z-Axis Travel: 320 mm
X-Axis Travel: 20 mm
Rapid Traverse X: 20 m/min
Rapid Traverse Y: 20 m/min
Max Turning Diameter: 20 mm
Max Drilling Diameter: 10 mm
Max Threading: 8 M
Internal Spindle Diameter: 24 mm
Spindle Speeds: 200–10000 t/min
Back Spindle Speeds: 200–5000 t/min
Spindle Motor Power: 3.7 / 7.5 kW
Back Spindle Power: 1.5 / 3.7 kW
Driven Tool Power: 1.5 / 2.2 kW
Turret Positions: 10
Bar Feeder Max Length: 3200 mm
Bar Diameter Range: 2–26 mm
Voltage: 3x400 V / 50 Hz
Total Power Required: 8 kVA
Machine Weight: 2500 kg
Overall Dimensions L x W x H: 2800 x 1370 x 1800 mm
Process Control Device: NORDMANN
Driven Tool Holder Radial: 3
3 Turning Tools
Bar Feeder: LNS Hydrobar Express 226
Lamp
Chip Conveyor
Fire Extinguishing System
Status Light
