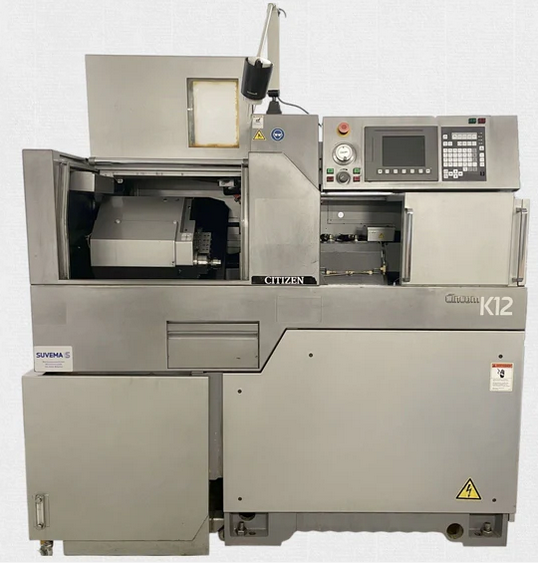

Citizen CNC CONTROL 15,000 RPM CINCOM K 12 VIIP 7 Axis

7 Axes
2 Spindles
Max Turning Diameter 12 mm
Max Turning Length 200 mm
Max Drilling Diameter 10 mm
Max Threading Diameter 8 M
Internal Spindle Diameter 20 mm
Main Spindle Speed 200–15,000 RPM
Back Spindle Speed 200–10,000 RPM
Spindle Positioning Increment 15°
Back Spindle Max Tapping Length 80 mm
Back Spindle Thread Drill Diameter 5 M
Turning Tools 6 pcs
Drilling Tools 4 pcs
Transverse Tools 4 pcs
Driven Tool Speed 6,000 RPM
Driven Tool Power 0.4 kW
Counter-Operation Drilling Tools 4 pcs
Voltage 50 Hz 3x400 V
Total Power 8 kVA
Machine Weight 2,050 kg
Overall Dimensions 1,875 × 1,125 × 1,610 mm
LNS TRYTON 107 Bar Feeder
Parts Catcher
Lamp
Coolant System
Collet Chuck
Set of Collets
RS-232 Interface
Status Light
