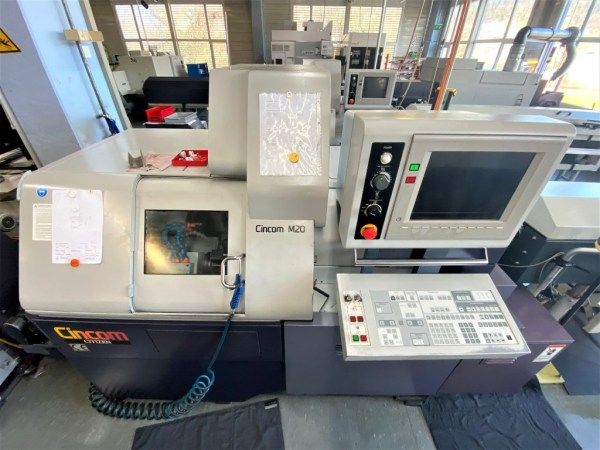

Citizen CNC CONTROL 8100 rpm M20-C 2 Axis

Max machining diameter: 20 mm
Max machining length: 320 mm per chuck
Max drilling diameter: 10 mm
Max tapping diameter: M8
Through-hole diameters: 24 mm, 21 mm
Spindle speed: 200–8100 rpm
Spindle speed change steps: Stepless, S4-digit

Rotary tool max drilling diameter gang tool: 5 mm
Rotary tool max drilling diameter turret: 5 mm
Rotary tool max chucking diameter gang tool: 10 mm
Rotary tool max chucking diameter turret: 7 mm
Rotary tool max tapping diameter turret: M5

Tool spindle speed gang tool: 250–5000 rpm
Tool spindle speed turret: 320–6380 rpm
Tool spindle speed change steps: Stepless, S4-digit

Back spindle max chuck diameter: 20 mm
Max front separate length of back machined workpiece: 125 mm
Back machining max drilling diameter: 8 mm
Back machining max tapping diameter: M8
Back spindle speed: 150–7200 rpm
Back spindle speed change steps: Stepless, S4-digit
Gang tool capacity cutting: 5 tools
Gang tool capacity drilling: 3 tools

Turret capacity: 10 tools
Turret indexing count: 10
Tool holder gang tool: Special M20 gang tool
Tool holder turret: Ø10–Ø10 mm positioning pin type
Cutter size gang tool: 13 x 13 x 130 mm
Cutter size turret: 10 x 10 x 60 mm

Max tool diameter gang tool drill/end mill: Ø10 mm
Max tool diameter rotary tool holder turret drill/end mill: Ø7 mm
Max tool diameter rotary tool holder turret tap: M6

Rapid feedrate X1 axis: 15 m/min
Rapid feedrate X2, Y1, Z1, Z2, Z3 axes: 18 m/min
Rapid feedrate A2 axis: 200 rpm

Least input increment X1, X2, Y1 axes: 0.001 mm
Least input increment Z1, Z2, Z3 axes: 0.001 mm
Least input increment A2 axis: 0.001°

Spindle indexing: 0.001°
Center height: 1070 mm
Spindle motor power: 2.2 / 3.7 kW
Back spindle motor power: 0.75 / 1.5 kW
Gang tool motor power: 0.4 kW
Turret motor power: 0.4 kW
Y1, A2 axes feed motor power: 0.3 kW x 2
X2, Y1, Z1, Z2, Z3 axes motor power: 0.5 kW x 5
Hydraulic motor power: 0.4 kW
Coolant motor power: 0.25 kW
Lubricant motor power: 0.004 kW
Input power capacity: 14 KVA
Required floor space: 1100 x 2540 x 1700 mm
Machine weight: 2500 kg
