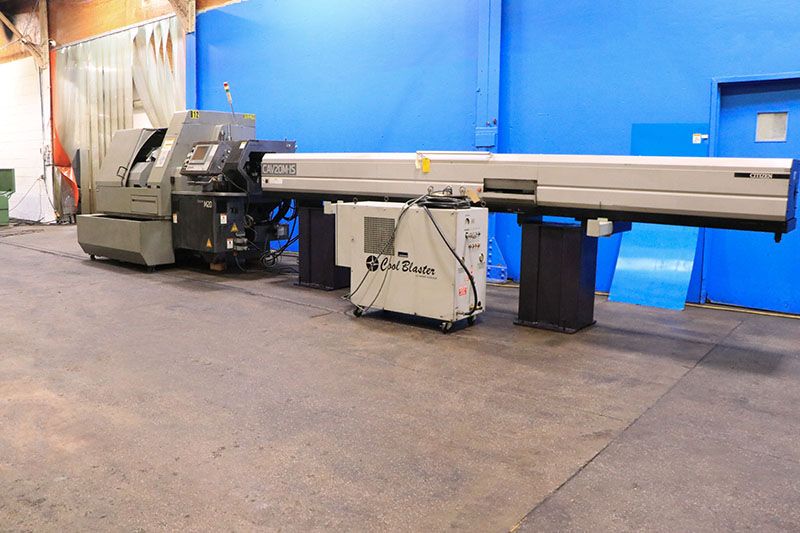

Citizen CNC (Mitsubishi Meldas) 10,000 RPM M-20V 10 Axis

CITIZEN M-20V
Year: 2005

Turning type: Swiss
Control: CNC (Mitsubishi Meldas)
Axis count: 10
Machining diameter: 0.75" (20 mm)
Machining length per chucking: 12.59" (320 mm)
Main spindle speed range: 200–10,000 RPM
Main spindle indexing: Full C
Sub spindle indexing: Full C
Backworking chucking diameter: 0.75" (20 mm)
Backworking length: 5.70" (145 mm)
Backworking drilling/tapping: M8
Back spindle speed range: 200–8000 RPM
Rotary tool speed range (turret & gang plate): 200–5000 RPM
Turret tooling capacity: 12 (24 in half index mode)
Turret Y-axis: Yes
Gang-tool tooling: 5 turning + 4 rotary
Back working tool post: 3
Rear-facing turret tools: Yes
Tool size (gang): 16 x 16 x 130 mm
Tool size (turret): 16 x 16 x 90 mm
Main spindle motor: 5 / 7.5 HP
Rotary tool motor: 2 HP
Back spindle motor: 3 HP
Machine dimensions (L x W x H): 110" x 50" x 72"
Machine weight: 6,100 lbs
