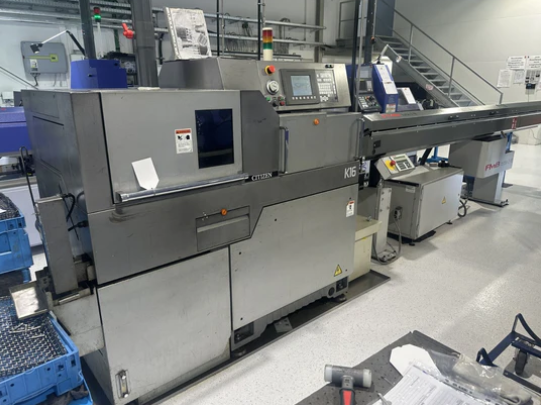

Citizen FANUC 15000 rpm CINCOM K16 VII P 7 Axis

Total number of axes: 5 + 2
Number of spindles: 2
Control: FANUC
Maximum turning diameter: 16 mm
Maximum turning length: 200 mm
Maximum drilling diameter: 10 mm
Maximum threading diameter: M8
Spindle bore: 20 mm
Main spindle speed range: 200–15000 rpm
Sub spindle speed range: 200–10000 rpm
Driven tool speed: up to 6000 rpm
Turning tools capacity: 6 positions
Drilling tools capacity: 4 positions
Transverse tools capacity: 4 positions
Counter-operation drilling tools: 4 positions
Power supply: 3 × 200 V / 50 Hz
Total power requirement: 8 kVA
Machine weight: approx. 2050 kg
Overall length: 2020 mm
Overall width: 1070 mm
Overall height: 1680 mm

Features / equipment
Bar feeder
Bar feeder model: TURBO 2-18
Bar diameter capacity: 2–18 mm
Set of collets
Status light
