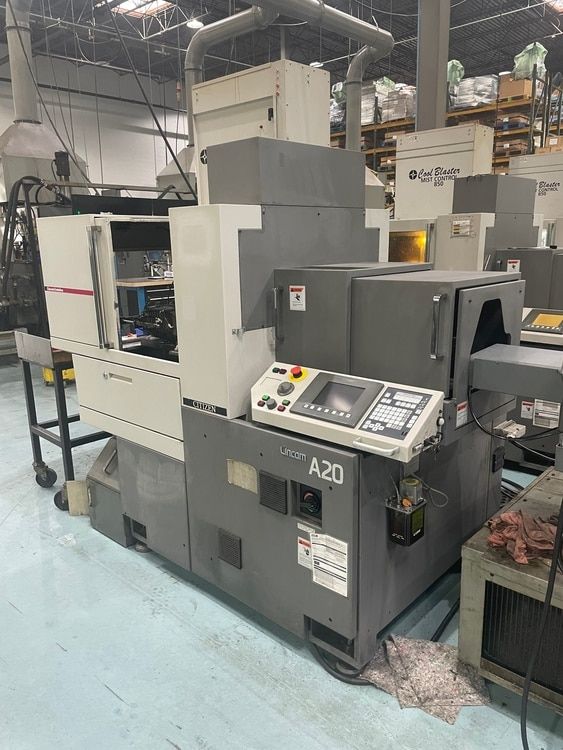

Citizen Fanuc 32i CNC Control 8,000 RPM A20VII 5 Axis

Citizen A20VII
2012

CAPACITY 0.75″
POWER 5 hp
RPM 8,000 RPM
# AXIS 5

SWISS, CHUCKER OR CONVERTIBLE? Swiss
LIVE BACK WORKING TOOLS? No
CONTROL CNC (FANUC 32I)
DIMENSIONS 8.5′ x 5.8′ x 6′
WEIGHT 5,600 lbs

Machine Diameter: 3/4″ (20 mm)
Machine Length: 6 1/2″ (165 mm)
Front Drilling Diameter: 1/4″ (10 mm)
Front Tapping Diameter: M8
Spindle Hole: 1 1/4″ (31 mm)
Main Spindle Speed: 8,000 RPM
Live Tool RPM: 6,000 RPM
Chuck Dia (Back Spindle): 3/4″ (20 mm)
Back Spindle Speed: 8,000 RPM
# of Tools Mounted: 21
Turning Tools on the Gang Post: 5
Rotary Tools for Cross Machining: 4
Tools for Front Drilling: 4
Tools for Back Drilling: 8

Machine Dimensions: 8.5′ x 5.8′ x 6′
Machine Weight: 5,600 lbs

EQUIPPED WITH:
Fanuc 32i CNC Control
Cool Blaster 850 Mist Collector
Cool Blaster CB510 High Pressure Coolant System
Edge Technologies C-320 Magazine Bar Feed (2011, s/n:C4201151217)
Lubrication System
(7) Tools
Ports
Hours:
Power On: 53,135
Run Time: 26,320
Cutting Time: 13,214
