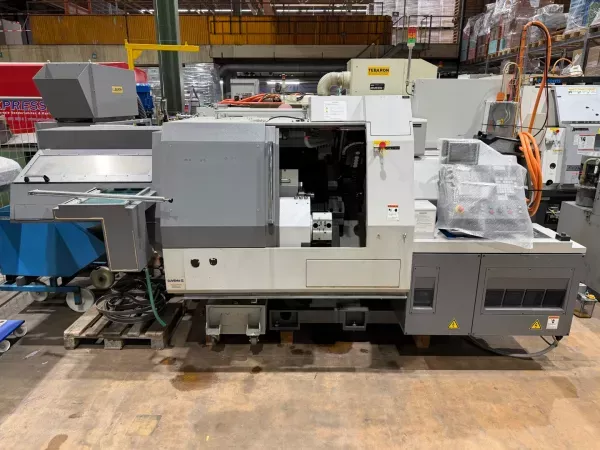

Citizen FANUC Series 210i-T 8000 rpm M32-4M5 5 Axis

X1 travel 108 mm
Y1 travel 347 mm
Z1 travel 325 mm
X2 travel 120 mm
Y2 travel 44 mm
Z2 travel 212 mm
X3 travel 313 mm
Z3 travel 430 mm
A3 travel 150 mm
A4 travel 1500 mm
C-axis indexing 1°
C-axis resolution 0.001°
Control system FANUC Series 210i-T
Maximum machining diameter 32 mm
Maximum machining length 320 mm
Bar length 2500 mm
Spindle bore diameter 37 mm
Main spindle speed 200–8000 rpm
Sub spindle speed 200–8000 rpm
Maximum sub spindle clamping diameter 32 mm
Rapid traverse X Y Z axes up to 32 m/min
Number of tools up to 25
Maximum front drilling diameter 12 mm
Maximum front tapping size M10
Maximum rear tapping size M10
Coolant tank capacity 198 l
Air pressure requirement 0.5 MPa
Memory size 5120 m 2048 kB
Smallest input increment 0.1 µm
Interface RS232C
Number of programs 63
Tool offsets 32 pairs
Machine weight 3550 kg
