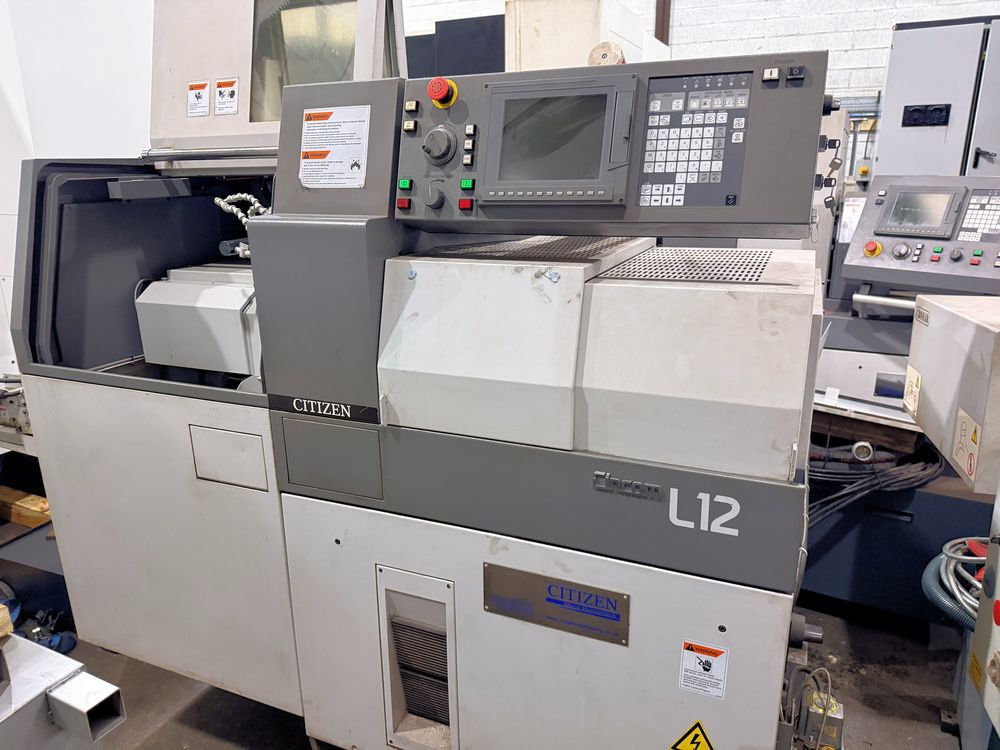

Citizen Mitsubishi 15,000 rpm L12-1M7 7 Axis

X-axis rapid feed: 35 m/min
Number of controlled axes: 7
Control: Mitsubishi
Bar capacity: 12 mm
Maximum cutting length: 135 mm
Maximum drilling diameter: 8 mm
Maximum tapping capacity: M6
Spindle speed: 15,000 rpm
Spindle motor power: 3.7 / 2.2 kW
Sub spindle speed: 10,000 rpm
Sub spindle motor power: 0.75 kW
Milling motor power: 0.75 kW
Milling RPM: 9,000 rpm
Machine length: 3,240 mm
Machine width: 931 mm
Machine height: 1,610 mm

Features / Equipment
C-axis and milling
C-axis on sub spindle
Coolant system
Interlocked guards
Low-voltage light
Magazine bar feeder
Parts conveyor
Swarf conveyor
Y-axis
Tooling configuration: 27 gang tool post 6, gang rotary tools 4–9, front drills 9, back drills 4–11
