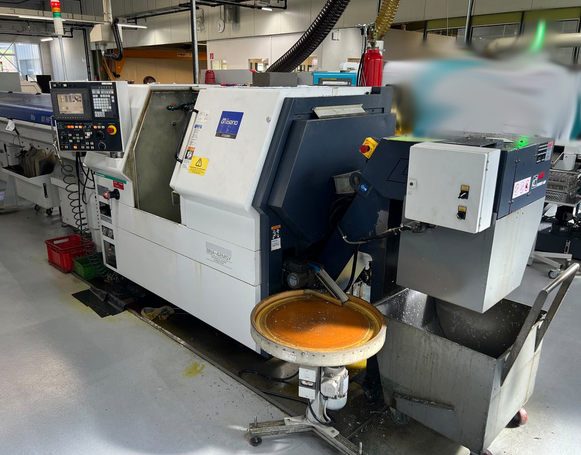

Citizen Mitsubishi 5000 1/min MIYANO BNA-42MSY 8 Axis

X-Axis Travel (Main Spindle): —
Y-Axis Travel: —
Z-Axis Travel (Main Spindle): —
X-Axis Travel (Opposed Spindle): 140 mm
Z-Axis Travel (Opposed Spindle): 310 mm
X/Y/Z Travel (Turret): 140 / 70 / 235 mm
C-Axis: Yes (Main Spindle)
C-Axis (Opposed Spindle): Yes
8-Axis CNC Horizontal Lathe

Control: Mitsubishi
Main Spindle Speed: 6000 1/min
Main Spindle Power: 7.5 / 5.5 kW
Spindle Bore (Main Spindle): 43 mm

Opposed Spindle Speed: 5000 1/min
Opposed Spindle Power: 5.5 / 3.7 kW
Spindle Bore (Opposed Spindle): 30 mm

Rear Turret Stations: 8
Driven Tool Stations: 8
Tool Drive Speed: 5000 1/min
Turret Axis: X1 / Y1 / Z1

Bar Loader: FMB SL 80 S / 1200A
Chip Conveyor: Yes
Coolant System: Yes
Coolant Through Spindle: Yes
Fully Enclosed Work Area
Work Area Lighting
Part Outfeed Conveyor
Finished Part Pickup Unit
Central Lubrication System
Preparation for Mist/Oil Extraction
Warning Lamp
Oil or Emulsion Operation Capability

Power Requirement: 30 kVA
Machine Dimensions: 2550 × 1450 × 1680 mm
Machine Weight: 3100 kg
