Citizen Mitsubishi 8,000 rpm C32 III 4 Axis

Feedrate, Rapid: 32 m/min; X2 axis 18 m/min
C axis/B axis: Gang B-axis tools 0 (Type III)
Control: Mitsubishi

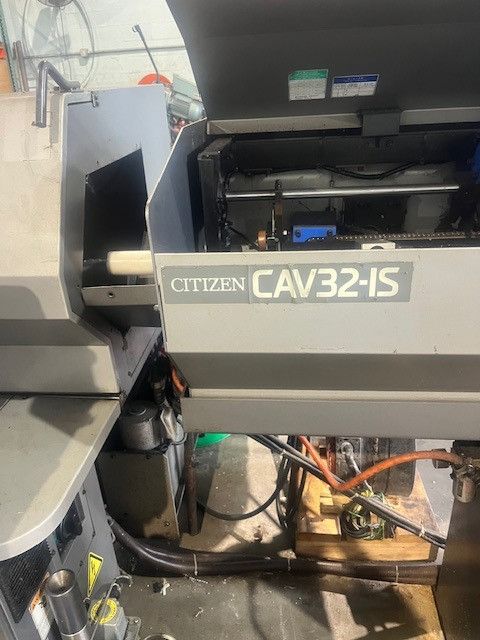

Bar capacity: 12 ft Cav Bar Feed
Max machining diameter (D): 32 mm (option for 35 mm)
Max machining length (one chucking): 320 mm
Front drilling diameter: Ø 12 mm
Front tapping capability: up to M10
Spindle through-hole diameter: Ø 36 mm
Main spindle speed: 8,000 rpm
Main spindle motor: 3.7 kW (continuous) / 7.5 kW (peak)
Back spindle drilling: Ø 10 mm
Back spindle tapping: M10
Back spindle speed: 8,000 rpm
Back spindle motor: 2.2 kW (continuous) / 3.7 kW (peak)
Gang rotary tool drilling: Ø 8 mm
Gang rotary tool tapping: M6
Gang rotary spindle speed: 6,000 rpm (rated at 4,500 rpm)
Turret rotary tool drilling: Ø 10 mm
Turret rotary tool tapping: M8
Turret rotary tool speed: 6,000 rpm
Back tool post rotary tool: Ø 8 mm
Back tool post rotary tapping: M6 (optional)
Back tool post rotary speed: 6,000 rpm
Max rear spindle overhang: 65 mm + 145 mm
Tool capacity: 25+α tools (gang and turret combined)
Gang tool post: 5 tools
Gang rotary tools: 5
Turret stations: 10
Back tool post: 5 tools
Gang tool post rotary drive: 1.0 kW
Turret rotary drive: 0.75 / 1.5 kW
Back tool post rotary drive: 1.0 kW
Center height: 1,150 mm
Power requirement: 20 kVA
Machine weight: ~3,500 kg
