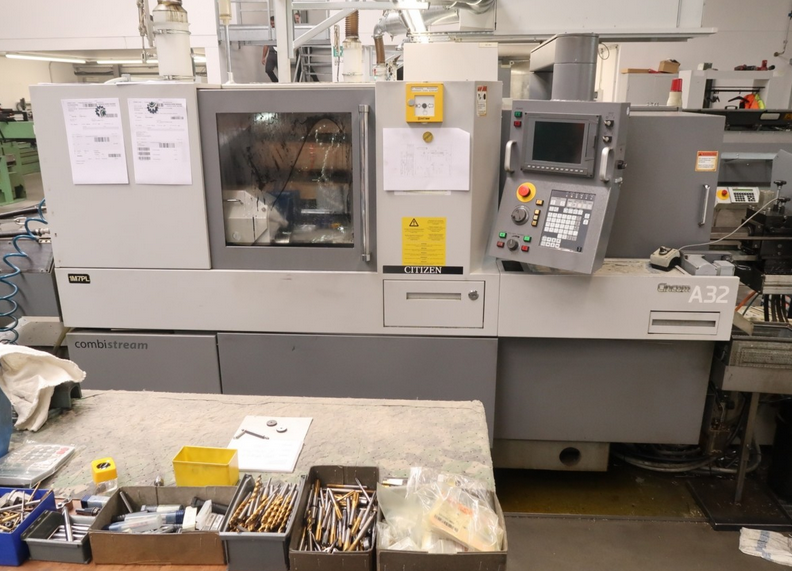

Citizen Mitsubishi M70 8000 rpm A32-VII (R) 3 Axis

Bar diameter: 32 mm
Spindle bore: 36 mm
Turning length: 320 mm
Counter spindle capacity: 32 mm
Counter spindle turning length: 600 mm
Main spindle speed: 200–8000 rpm
Counter spindle speed: 200–8000 rpm
Rapid traverse X1: 32 m/min
Rapid traverse Y1 + Z1 + X2 + Z2: 45 m/min
Control: Mitsubishi M70
Number of axes: 5 + 2 × C axis (7 total)
Operating hours: 119,000 h
Spindle motor power: 7.5 / 5.5 kW
Machine weight: approx. 3.5 + FMB t
Machine dimensions: approx. 2.5 × 1.2 × 1.82 + FMB m

Equipped With
FMB Turbo 3-36 3200 bar feeder
Combistream chip conveyor 130 bar
Parts conveyor belt
Parts container for long part option
CO₂ fire extinguishing system
Driven tools 4 + 4
Various tool holders
Collet chuck for main and counter spindle
Synchronous driven guide bushing
Guide bushing drive unit
Part ejector
Cross machining drive unit with 4 spindles
Door interlock system
Counter (pick-off) spindle
Parts receiving basket with conveyor
Pneumatic sealing unit
Internal work light
3-color warning light
Cut-off tool breakage monitoring
High-pressure coolant system COMBISTREAM 130 bar with 8 outlets
4 driven tools for back machining
Option “long parts” 600 mm with container, guide tube, and spindle nut
Bar feeder with various material guides (7, 12, 20, 36)
Adapters, telescopic tubes, and inserts
CO₂ fire extinguishing system FB 703 with control, flame and temperature sensors, manual trigger, and fire alarm
Stainless steel oil tray under machine

CINCOM SYSTEM M70PLC control functions:
multi-axis CNC system for simultaneous or single machining
cutter radius compensation, cycle repeat
deep drilling cycle, constant cutting speed
chamfer/radius insertion, constant speed on counter spindle
threading and tapping synchronization
C-axis on main and counter spindle, spindle synchronization
geometric functions, collision monitoring, 8.4" color LCD display

Additional Information
Machine ready for demonstration
Still located at customer site
Video(s) available on website
